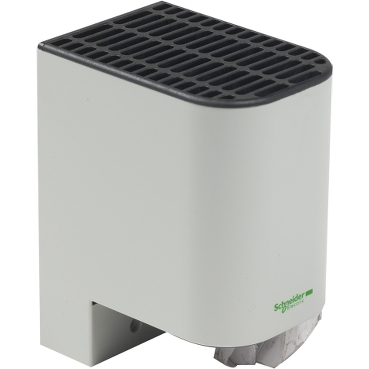

ClimaSys, Compact resistance heater, heating resistance 50W,110-250V insulate

Home ProductsIndustrialClimaSysCompact resistance heater

ClimaSys, Compact resistance heater, heating resistance 50W,110-250V insulate

Item Number: NSYCR50WU2C

Datasheet

Product Dimensions

Width icon

Widthexternal: 60 mm

Height icon

Heightexternal: 110 mm

Depth icon

Depthexternal : 90 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

ClimaSys

Product or component type

resistance heater

Warranty

18 months

Physical

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP20

Electrical insulation class

class II

Product certifications

UL|VDE

Height

external: 110 mm

Width

external: 60 mm

Depth

external : 90 mm

Fixing mode

by clips

Mounting support

35 mm DIN rail

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2103011EN

Circularity profile

N/A

Material

Material

body: extruded aluminium|cover: plastic

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

50

Package 3 bare product quantity

500

Product name

ClimaSys CR

Power range

50 W

Input voltage

120...240 V AC 50/60 Hz

Electrical connection

4 screw terminals 2.5 mm²

Operating position

vertical

Condition of use

electrical protection is needed|air sealed enclosure|heaters must be installed with a thermal controller

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

12.500 cm

Package 1 width

10.000 cm

Package 1 length

7.500 cm

Package 1 weight

336.000 g

Unit type of package 2

CAR

Number of units in package 2

50

Package 2 height

31.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

18.006 kg

Unit type of package 3

PAM

Number of units in package 3

500

Package 3 height

75.000 cm

Package 3 width

100.000 cm

Package 3 length

120.000 cm

Package 3 weight

195.060 kg

Scip number

60bb7229-9ac3-41cb-896e-a93aa448ebf8

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
