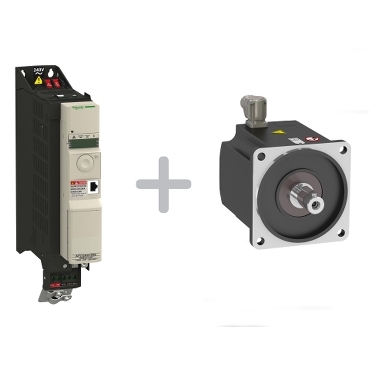

Altivar 32, Variable speed drive ATV32, 1.5 kw, 200 V, 1 phase, with heat sink

Home ProductsIndustrialAltivarVariable speed drive ATV32

Altivar 32, Variable speed drive ATV32, 1.5 kw, 200 V, 1 phase, with heat sink

Item Number: ATV32HU15M2


Product Dimensions

Width icon

Width60 mm

Height icon

Height325 mm

Depth icon

Depth245 mm


Qty UoM EAN Colour



Range of product

Altivar 32

Product or component type

variable speed drive

Product destination

asynchronous motors|synchronous motors

Sustainable offer status

Green Premium product


18 months


Function available


Local signalling

1 LED red for drive voltage|1 LED green for CANopen run|1 LED red for CANopen error|1 LED red for drive fault


internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection

Protection type

input phase breaks: drive|overcurrent between output phases and earth: drive|overheating protection: drive|short-circuit between motor phases: drive|thermal protection: drive

Communication port protocol


Connector type

1 RJ45 (on front face) for Modbus/CANopen


60 mm


325 mm


245 mm

Net weight

2.9 kg


EN 61800-3 environments 2 category C2|EN/IEC 61800-5-1|EN 61800-3 environments 1 category C2|EN/IEC 61800-3|EN 55011 class A group 1

Product certifications




Ip degree of protection

IP20 conforming to EN/IEC 61800-5-1

Relative humidity

5...95 % without condensation conforming to IEC 60068...2-3|5...95 % without dripping water conforming to IEC 60068...2-3

Ambient air temperature for operation

-10...50 °C without derating|50...60 °C with derating factor

Ambient air temperature for storage

-25...70 °C

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free


China rohs regulation


Rohs exemption information


Environmental disclosure


Circularity profile


California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to


Product specific application

complex machines

Assembly style

with heat sink

Component name


Emc filter

Class C2 EMC filter integrated

Network number of phases

1 phase

[us] rated supply voltage

200...240 V - 15...10 %

Supply voltage limits

170...264 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

Motor power kw

1.5 kW at 200...240 V

Motor power hp

2 hp at 200...240 V

Line current

14.8 A for 240 V 1 phase 1.5 kW / 2 hp|17.6 A for 200 V 1 phase 1.5 kW / 2 hp

Apparent power

3.6 kVA at 240 V 1 phase 1.5 kW / 2 hp

Prospective line isc

1 kA for 1 phase

Nominal output current

8 A at 4 kHz 240 V 1.5 kW / 2 hp

Maximum transient current

12 A for 60 s 1.5 kW / 2 hp

Output frequency

0.0005...0.599 kHz

Nominal switching frequency

4 kHz

Switching frequency

2...16 kHz adjustable

Speed range

1...100 for asynchronous motor in open-loop mode

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Torque accuracy

+/- 15 %

Transient overtorque

170...200 %

Braking torque

<= 170 % with braking resistor

Asynchronous motor control profile

voltage/frequency ratio, 5 points|flux vector control without sensor, standard|voltage/frequency ratio, 2 points|voltage/frequency ratio - Energy Saving, quadratic U/f|flux vector control without sensor - Energy Saving, NoLoad law

Synchronous motor control profile

vector control without sensor

Regulation loop

adjustable PID regulator

Motor slip compensation

adjustable 0...300 %|not available in voltage/frequency ratio (2 or 5 points)|automatic whatever the load

Output voltage

<= power supply voltage

Noise level

43 dB conforming to 86/188/EEC


electrical between power and control

Electrical connection

screw terminal, clamping capacity: 0.5...1.5 mm², AWG 18...AWG 14 (control)|removable screw terminals, clamping capacity: 1.5...2.5 mm², AWG 14...AWG 12 (motor/braking resistor)|screw terminal, clamping capacity: 2.5...4 mm², AWG 12...AWG 10 (power supply)

Tightening torque

0.5 N.m, 4.4 lb/ft (control)|0.7 N.m, 7.1 lb/ft (motor/braking resistor)|0.6 N.m, 5.3 lb/ft (power supply)

Analogue input number


Analogue input type

AI1 voltage: 0...10 V DC, impedance: 30000 Ohm, resolution 10 bits|AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30000 Ohm, resolution 10 bits|AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits

Sampling duration

2 ms (AI1, AI2, AI3) - analog input(s)|2 ms (AO1) - analog input(s)

Response time

LI1...LI6 8 ms, tolerance +/- 0.7 ms for logic output(s)|R1A, R1B, R1C 2 ms for relay output(s)|R2A, R2C 2 ms for relay output(s)


+/- 0.2 % (AI1, AI2, AI3) for a temperature of -10...60 °C|+/- 0.5 % (AI1, AI2, AI3) for a temperature of 25 °C|+/- 1 % (AO1) for a temperature of 25 °C|+/- 2 % (AO1) for a temperature of -10...60 °C

Linearity error

+/- 0.2...0.5 % of maximum value (AI1, AI2, AI3)|+/- 0.3 % (AO1)

Analogue output number


Analogue output type

AO1 software-configurable current 0...20 mA, impedance: 800 Ohm, resolution 10 bits|AO1 software-configurable voltage 0...10 V, impedance: 470 Ohm, resolution 10 bits

Discrete output number


Discrete output type

configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles|configurable relay logic: (R2A, R2B) NO - 100000 cycles|logic: (LO)

Minimum switching current

5 mA at 24 V DC for configurable relay logic

Maximum switching current

R1: 3 A at 250 V AC resistive load, cos phi = 1 |R1: 4 A at 30 V DC resistive load, cos phi = 1 |R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 |R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 |R2: 5 A at 250 V AC resistive load, cos phi = 1 |R2: 5 A at 30 V DC resistive load, cos phi = 1

Discrete input number


Discrete input type

programmable (sink/source) (LI1...LI4)24...30 V DC, with level 1 PLC|programmable as pulse input 20 kpps (LI5)24...30 V DC, with level 1 PLC|switch-configurable PTC probe (LI6)24...30 V DC|safe torque off (STO)24...30 V DC - 1500 Ohm

Discrete input logic

negative logic (sink) (LI1...LI6), > 19 V (state 0), < 13 V (state 1)|positive logic (source) (LI1...LI6), < 5 V (state 0), > 11 V (state 1)

Acceleration and deceleration ramps

ramp switching|CUS|S|deceleration ramp automatic stop DC injection|linear|deceleration ramp adaptation|U

Braking to standstill

by DC injection

Physical interface

2-wire RS 485 for Modbus

Transmission frame

RTU for Modbus

Type of polarization

no impedance for Modbus

Number of addresses

1...127 for CANopen|1...247 for Modbus

Method of access

slave CANopen

Electromagnetic compatibility

1.2/50 µs - 8/20 µs surge immunity test, level 3 conforming to IEC 61000-4-5|conducted radio-frequency immunity test, level 3 conforming to IEC 61000-4-6|electrical fast transient/burst immunity test, level 4 conforming to IEC 61000-4-4|electrostatic discharge immunity test, level 3 conforming to IEC 61000-4-2|radiated radio-frequency electromagnetic field immunity test, level 3 conforming to IEC 61000-4-3|voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Option card

communication card for CANopen daisy chain|communication card for CANopen open style|communication card for DeviceNet|communication card for EtherNet/IP|communication card for Profibus DP V1

Pollution degree

2 conforming to EN/IEC 61800-5-1

Vibration resistance

1 gn (f = 13-200 Hz) conforming to EN/IEC 60068-2-6|1.5 mm peak to peak (f = 3-13 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to EN/IEC 60068-2-27

Operating altitude

<= 1000 m without derating|1000...2000 m with current derating 1 % per 100 m

Operating position

vertical +/- 10 degree


The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
