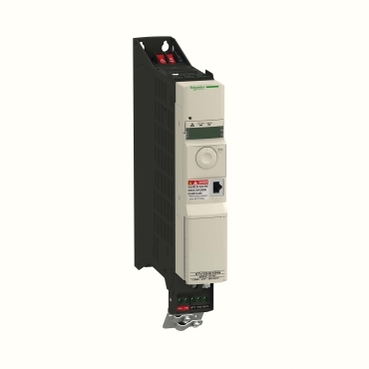

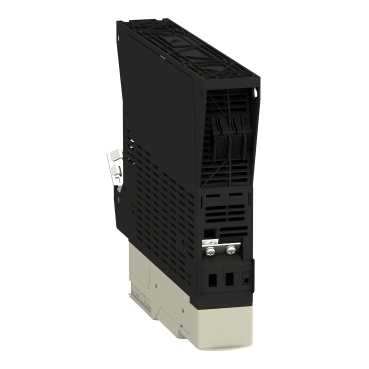

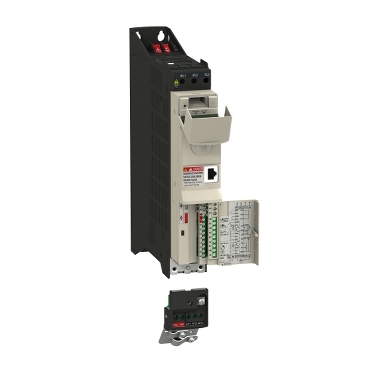

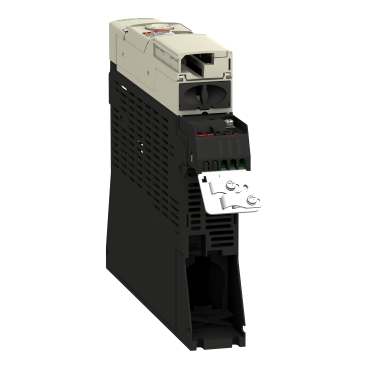

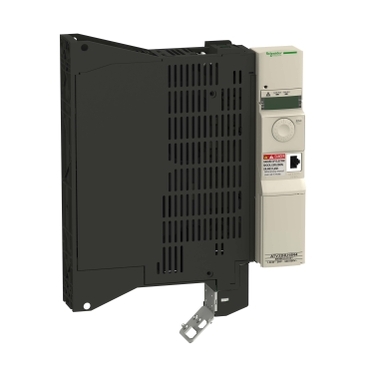

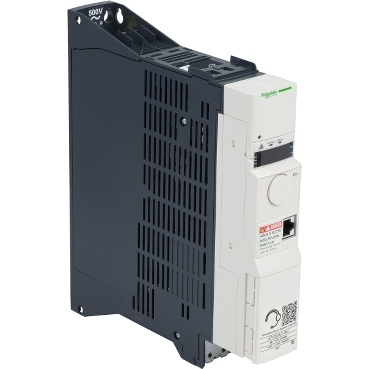

Altivar 32, Variable speed drive ATV32, 1.1 kw, 400 V, 3 phase, with heat sink
Item Number: ATV32HU11N4
Specifications
Design
Range of product
Product or component type
Product destination
- asynchronous motors
- synchronous motors
Warranty
Physical
Function available
Local signalling
- 1 LED red for drive voltage
- 1 LED green for CANopen run
- 1 LED red for CANopen error
- 1 LED red for drive fault
Supply
Protection type
- input phase breaks: drive
- overcurrent between output phases and earth: drive
- overheating protection: drive
- short-circuit between motor phases: drive
- thermal protection: drive
Communication port protocol
- CANopen
- Modbus
Connector type
Width
Height
Depth
Net weight
Standards
- EN 61800-3 environments 2 category C2
- EN 61800-3 environments 1 category C2
- EN/IEC 61800-3
- EN 55011 class A group 1
- EN/IEC 61800-5-1
Product certifications
- CSA
- C-Tick
- NOM 117
- GOST
- UL
Marking
Ip degree of protection
Relative humidity
- 5...95 % without condensation conforming to IEC 60068...2-3
- 5...95 % without dripping water conforming to IEC 60068...2-3
Ambient air temperature for operation
- -10...50 °C without derating
- 50...60 °C with derating factor
Ambient air temperature for storage
Others
Product specific application
Assembly style
Component name
Emc filter
Network number of phases
[us] rated supply voltage
Supply voltage limits
Supply frequency
Network frequency
Motor power kw
Motor power hp
Line current
- 3.8 A for 500 V 3 phases 1.1 kW / 1.5 hp
- 5 A for 380 V 3 phases 1.1 kW / 1.5 hp
Apparent power
Prospective line isc
Nominal output current
Maximum transient current
Output frequency
Nominal switching frequency
Switching frequency
Speed range
Speed accuracy
Torque accuracy
Transient overtorque
Braking torque
Asynchronous motor control profile
- voltage/frequency ratio, 5 points
- flux vector control without sensor, standard
- voltage/frequency ratio, 2 points
- voltage/frequency ratio - Energy Saving, quadratic U/f
- flux vector control without sensor - Energy Saving, NoLoad law
Synchronous motor control profile
Regulation loop
Motor slip compensation
- adjustable 0...300 %
- automatic whatever the load
- not available in voltage/frequency ratio (2 or 5 points)
Output voltage
Noise level
Insulation
Electrical connection
- screw terminal, clamping capacity: 0.5...1.5 mm², AWG 18...AWG 14 (control)
- removable screw terminals, clamping capacity: 1.5...2.5 mm², AWG 14...AWG 12 (motor/braking resistor)
- screw terminal, clamping capacity: 1.5...4 mm², AWG 14...AWG 10 (power supply)
Tightening torque
- 0.5 N.m, 4.4 lb/ft (control)
- 0.7 N.m, 7.1 lb/ft (motor/braking resistor)
- 0.6 N.m, 5.3 lb/ft (power supply)
Analogue input number
Analogue input type
- AI1 voltage: 0...10 V DC, impedance: 30000 Ohm, resolution 10 bits
- AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30000 Ohm, resolution 10 bits
- AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits
Sampling duration
- 2 ms (AI1, AI2, AI3) - analog input(s)
- 2 ms (AO1) - analog input(s)
Response time
- LI1...LI6 8 ms, tolerance +/- 0.7 ms for logic output(s)
- R1A, R1B, R1C 2 ms for relay output(s)
- R2A, R2C 2 ms for relay output(s)
Accuracy
- +/- 0.2 % (AI1, AI2, AI3) for a temperature of -10...60 °C
- +/- 0.5 % (AI1, AI2, AI3) for a temperature of 25 °C
- +/- 1 % (AO1) for a temperature of 25 °C
- +/- 2 % (AO1) for a temperature of -10...60 °C
Linearity error
- +/- 0.2...0.5 % of maximum value (AI1, AI2, AI3)
- +/- 0.3 % (AO1)
Analogue output number
Analogue output type
- AO1 software-configurable current 0...20 mA, impedance: 800 Ohm, resolution 10 bits
- AO1 software-configurable voltage 0...10 V, impedance: 470 Ohm, resolution 10 bits
Discrete output number
Discrete output type
- configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
- configurable relay logic: (R2A, R2B) NO - 100000 cycles
- logic: (LO)
Minimum switching current
Maximum switching current
- R1: 3 A at 250 V AC resistive load, cos phi = 1
- R1: 4 A at 30 V DC resistive load, cos phi = 1
- R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4
- R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4
- R2: 5 A at 250 V AC resistive load, cos phi = 1
- R2: 5 A at 30 V DC resistive load, cos phi = 1
Discrete input number
Discrete input type
- programmable (sink/source) (LI1...LI4)24...30 V DC, with level 1 PLC
- programmable as pulse input 20 kpps (LI5)24...30 V DC, with level 1 PLC
- switch-configurable PTC probe (LI6)24...30 V DC
- safe torque off (STO)24...30 V DC - 1500 Ohm
Discrete input logic
- negative logic (sink) (LI1...LI6), > 19 V (state 0), < 13 V (state 1)
- positive logic (source) (LI1...LI6), < 5 V (state 0), > 11 V (state 1)
Acceleration and deceleration ramps
- U
- deceleration ramp automatic stop DC injection
- CUS
- S
- deceleration ramp adaptation
- ramp switching
- linear
Braking to standstill
Physical interface
Transmission frame
Type of polarization
Number of addresses
- 1...127 for CANopen
- 1...247 for Modbus
Method of access
Electromagnetic compatibility
- 1.2/50 µs - 8/20 µs surge immunity test, level 3 conforming to IEC 61000-4-5
- conducted radio-frequency immunity test, level 3 conforming to IEC 61000-4-6
- electrical fast transient/burst immunity test, level 4 conforming to IEC 61000-4-4
- electrostatic discharge immunity test, level 3 conforming to IEC 61000-4-2
- radiated radio-frequency electromagnetic field immunity test, level 3 conforming to IEC 61000-4-3
- voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Option card
- communication card for CANopen daisy chain
- communication card for CANopen open style
- communication card for DeviceNet
- communication card for EtherNet/IP
- communication card for Profibus DP V1
Functionality
Specific application
Pollution degree
Vibration resistance
- 1 gn (f = 13-200 Hz) conforming to EN/IEC 60068-2-6
- 1.5 mm peak to peak (f = 3-13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance
Operating altitude
- <= 1000 m without derating
- 1000...3000 m with current derating 1 % per 100 m
Operating position
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-

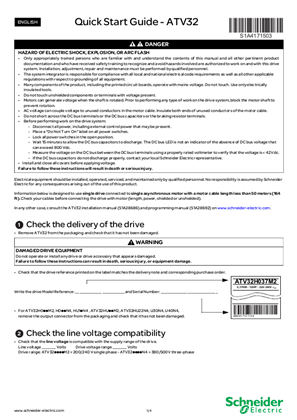

Installation Instruction
-

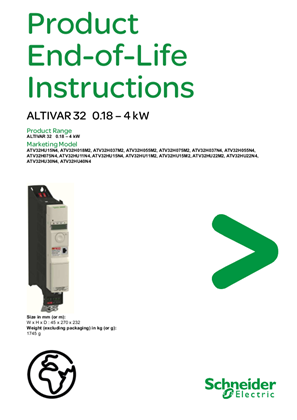

End of Life Manual
-
Operating Manuals
-
eTechPub
-

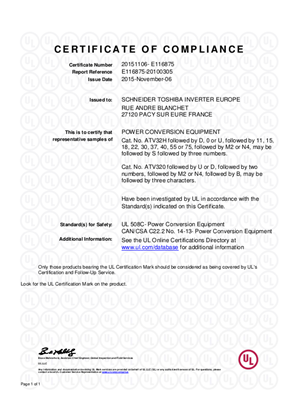

Certificates (MSDS)
-
