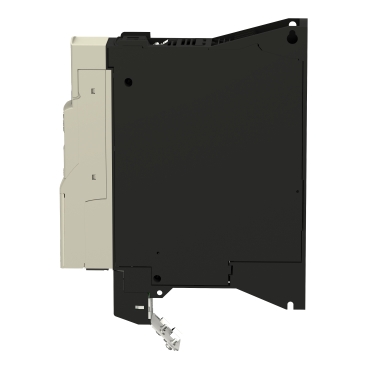

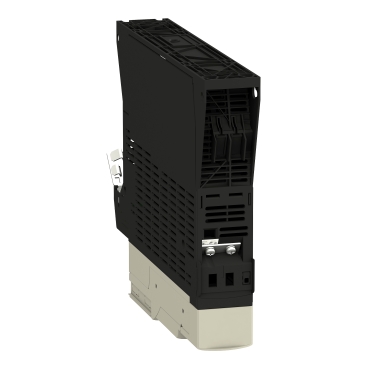

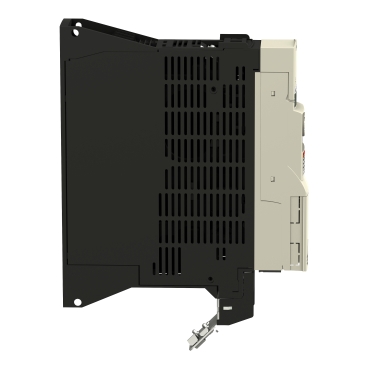

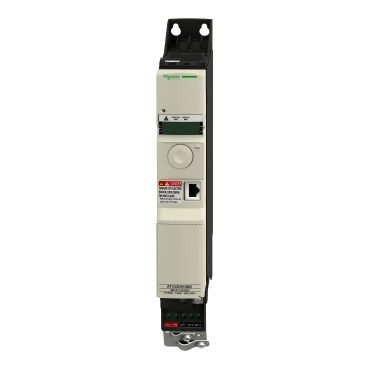

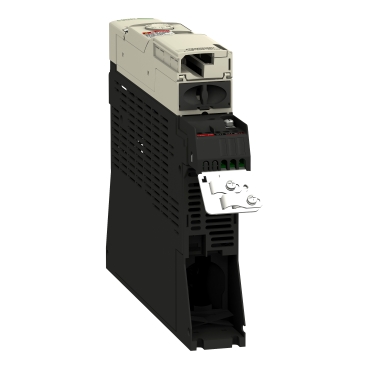

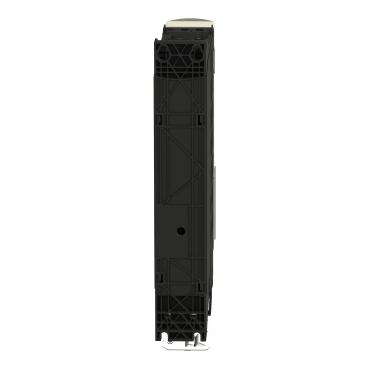

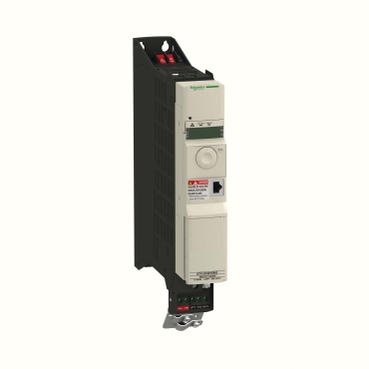

Altivar 32, Variable speed drive ATV32, 0,55 kw, 200 V, 1 phase, with heat sink

Home ProductsIndustrialAltivarVariable speed drive ATV32

Altivar 32, Variable speed drive ATV32, 0,55 kw, 200 V, 1 phase, with heat sink

Item Number: ATV32H055M2

Datasheet

Product Dimensions

Width icon

Width45 mm

Height icon

Height325 mm

Depth icon

Depth245 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Altivar 32

Product or component type

variable speed drive

Product destination

synchronous motors|asynchronous motors

Warranty

18 months

Physical

Function available

-

Local signalling

1 LED red for drive voltage|1 LED green for CANopen run|1 LED red for CANopen error|1 LED red for drive fault

Supply

internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection

Protection type

input phase breaks: drive|overcurrent between output phases and earth: drive|overheating protection: drive|short-circuit between motor phases: drive|thermal protection: drive

Communication port protocol

Modbus|CANopen

Connector type

1 RJ45 (on front face) for Modbus/CANopen

Width

45 mm

Height

325 mm

Depth

245 mm

Net weight

2.4 kg

Standards

EN/IEC 61800-5-1|EN 61800-3 environments 1 category C2|EN 55011 class A group 1|EN/IEC 61800-3|EN 61800-3 environments 2 category C2

Product certifications

NOM 117|CSA|C-Tick|UL|GOST

Marking

CE

Ip degree of protection

IP20 conforming to EN/IEC 61800-5-1

Relative humidity

5...95 % without condensation conforming to IEC 60068...2-3|5...95 % without dripping water conforming to IEC 60068...2-3

Ambient air temperature for operation

-10...50 °C without derating|50...60 °C with derating factor

Ambient air temperature for storage

-25...70 °C

Others

Product specific application

complex machines

Assembly style

with heat sink

Component name

ATV32

Emc filter

Class C2 EMC filter integrated

Network number of phases

1 phase

[us] rated supply voltage

200...240 V - 15...10 %

Supply voltage limits

170...264 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

Motor power kw

0.55 kW at 200...240 V

Motor power hp

0.75 hp at 200...240 V

Line current

6.7 A for 240 V 1 phase 0.55 kW / 0.75 hp|7.9 A for 200 V 1 phase 0.55 kW / 0.75 hp

Apparent power

1.6 kVA at 240 V 1 phase 0.55 kW / 0.75 hp

Prospective line isc

1 kA for 1 phase

Nominal output current

3.7 A at 4 kHz 240 V 0.55 kW / 0.75 hp

Maximum transient current

5.6 A for 60 s 0.55 kW / 0.75 hp

Output frequency

0.0005...0.599 kHz

Nominal switching frequency

4 kHz

Switching frequency

2...16 kHz adjustable

Speed range

1...100 for asynchronous motor in open-loop mode

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Torque accuracy

+/- 15 %

Transient overtorque

170...200 %

Braking torque

<= 170 % with braking resistor

Asynchronous motor control profile

flux vector control without sensor, standard|voltage/frequency ratio, 2 points|voltage/frequency ratio, 5 points|voltage/frequency ratio - Energy Saving, quadratic U/f|flux vector control without sensor - Energy Saving, NoLoad law

Synchronous motor control profile

vector control without sensor

Regulation loop

adjustable PID regulator

Motor slip compensation

automatic whatever the load|adjustable 0...300 %|not available in voltage/frequency ratio (2 or 5 points)

Output voltage

<= power supply voltage

Noise level

43 dB conforming to 86/188/EEC

Insulation

electrical between power and control

Electrical connection

screw terminal, clamping capacity: 0.5...1.5 mm², AWG 18...AWG 14 (control)|removable screw terminals, clamping capacity: 1.5...2.5 mm², AWG 14...AWG 12 (motor/braking resistor)|screw terminal, clamping capacity: 1.5...4 mm², AWG 14...AWG 10 (power supply)

Tightening torque

0.5 N.m, 4.4 lb/ft (control)|0.7 N.m, 7.1 lb/ft (motor/braking resistor)|0.6 N.m, 5.3 lb/ft (power supply)

Analogue input number

3

Analogue input type

AI1 voltage: 0...10 V DC, impedance: 30000 Ohm, resolution 10 bits|AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30000 Ohm, resolution 10 bits|AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits

Sampling duration

2 ms (AI1, AI2, AI3) - analog input(s)|2 ms (AO1) - analog input(s)

Response time

LI1...LI6 8 ms, tolerance +/- 0.7 ms for logic output(s)|R1A, R1B, R1C 2 ms for relay output(s)|R2A, R2C 2 ms for relay output(s)

Accuracy

+/- 0.2 % (AI1, AI2, AI3) for a temperature of -10...60 °C|+/- 0.5 % (AI1, AI2, AI3) for a temperature of 25 °C|+/- 1 % (AO1) for a temperature of 25 °C|+/- 2 % (AO1) for a temperature of -10...60 °C

Linearity error

+/- 0.2...0.5 % of maximum value (AI1, AI2, AI3)|+/- 0.3 % (AO1)

Analogue output number

1

Analogue output type

AO1 software-configurable current 0...20 mA, impedance: 800 Ohm, resolution 10 bits|AO1 software-configurable voltage 0...10 V, impedance: 470 Ohm, resolution 10 bits

Discrete output number

3

Discrete output type

configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles|configurable relay logic: (R2A, R2B) NO - 100000 cycles|logic: (LO)

Minimum switching current

5 mA at 24 V DC for configurable relay logic

Maximum switching current

R1: 3 A at 250 V AC resistive load, cos phi = 1 |R1: 4 A at 30 V DC resistive load, cos phi = 1 |R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 |R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 |R2: 5 A at 250 V AC resistive load, cos phi = 1 |R2: 5 A at 30 V DC resistive load, cos phi = 1

Discrete input number

7

Discrete input type

programmable (sink/source) (LI1...LI4)24...30 V DC, with level 1 PLC|programmable as pulse input 20 kpps (LI5)24...30 V DC, with level 1 PLC|switch-configurable PTC probe (LI6)24...30 V DC|safe torque off (STO)24...30 V DC - 1500 Ohm

Discrete input logic

negative logic (sink) (LI1...LI6), > 19 V (state 0), < 13 V (state 1)|positive logic (source) (LI1...LI6), < 5 V (state 0), > 11 V (state 1)

Acceleration and deceleration ramps

deceleration ramp automatic stop DC injection|U|ramp switching|linear|S|CUS|deceleration ramp adaptation

Braking to standstill

by DC injection

Physical interface

2-wire RS 485 for Modbus

Transmission frame

RTU for Modbus

Type of polarization

no impedance for Modbus

Number of addresses

1...127 for CANopen|1...247 for Modbus

Method of access

slave CANopen

Electromagnetic compatibility

1.2/50 µs - 8/20 µs surge immunity test, level 3 conforming to IEC 61000-4-5|conducted radio-frequency immunity test, level 3 conforming to IEC 61000-4-6|electrical fast transient/burst immunity test, level 4 conforming to IEC 61000-4-4|electrostatic discharge immunity test, level 3 conforming to IEC 61000-4-2|radiated radio-frequency electromagnetic field immunity test, level 3 conforming to IEC 61000-4-3|voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Option card

communication card for CANopen daisy chain|communication card for CANopen open style|communication card for DeviceNet|communication card for EtherNet/IP|communication card for Profibus DP V1

Pollution degree

2 conforming to EN/IEC 61800-5-1

Vibration resistance

1 gn (f = 13-200 Hz) conforming to EN/IEC 60068-2-6|1.5 mm peak to peak (f = 3-13 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to EN/IEC 60068-2-27

Operating altitude

<= 1000 m without derating|1000...2000 m with current derating 1 % per 100 m

Operating position

vertical +/- 10 degree
