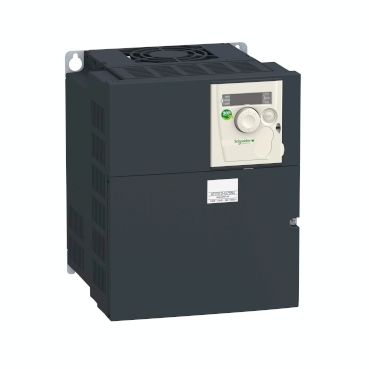

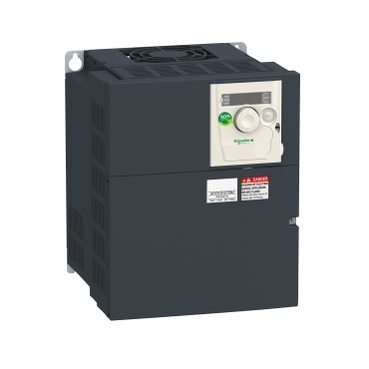

Altivar 312 Variable speed drive ATV312 7.5kW, 18kVA, 269W, 380..500 V, 3-phase supply

Item Number: ATV312HU75N4

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width180 mm

Height232 mm

Depth172 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480077692	-

Specifications

Design

Product destination	asynchronous motors
Range of product	Altivar 312
Product or component type	variable speed drive
Warranty	18 months

Physical

Supply	internal supply for logic inputs: 19...30 V 100 mA, protection type: overload and short-circuit protection internal supply for reference potentiometer (2.2 to 10 kOhm): 10...10.8 V 10 mA, protection type: overload and short-circuit protection
Ip degree of protection	IP20 on upper part without cover plate IP21 on connection terminals IP31 on upper part IP41 on upper part
Communication port protocol	CANopen Modbus
Insulation resistance	>= 500 mOhm 500 V DC for 1 minute
Local signalling	1 LED (red) for drive voltage four 7-segment display units for CANopen bus status
Connector type	1 RJ45 for Modbus/CANopen
Protection type	input phase breaks: drive line supply overvoltage and undervoltage safety circuits: drive line supply phase loss safety function, for three phases supply: drive motor phase breaks: drive overcurrent between output phases and earth (on power up only): drive overheating protection: drive short-circuit between motor phases: drive thermal protection: motor
Width	180 mm
Height	232 mm
Depth	172 mm
Net weight	6.5 kg
Relative humidity	5...95 % without condensation conforming to IEC 60068...2-3 5...95 % without dripping water conforming to IEC 60068...2-3
Product certifications	CSA DNV NOM GOST C-Tick UL
Marking	CE
Standards	IEC 61800-3 IEC 61800-5-1
Ambient air temperature for operation	-10...50 °C without derating (with protective cover on top of the drive) -10...60 °C with derating factor (without protective cover on top of the drive)
Ambient air temperature for storage	-25...70 °C
Mercury free	Yes
Rohs exemption information	Yes
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
	At least in Europe
Component name	ATV312
Motor power kw	7.5 kW
Motor power hp	10 hp
Supply frequency	50...60 Hz - 5...5 %
Network number of phases	3 phases
Line current	27.7 A at 380 V, Isc = 22 kA 21 A at 500 V
Apparent power	18 kVA
Maximum transient current	25.5 A for 60 s
Power dissipation in w	269 W at nominal load
Speed range	1...50
Electrical connection	Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 2.5-2.5 mm² AWG 14 L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 16-16 mm² AWG 6
Option card	communication card for CANopen daisy chain communication card for DeviceNet communication card for Fipio communication card for Modbus TCP communication card for Profibus DP
Product specific application	simple machine
[us] rated supply voltage	380...500 V - 15...10 %
Emc filter	integrated
Supply voltage limits	323...550 V
Continuous output current	17 A at 4 kHz
Output frequency	0...500 Hz
Switching frequency	2...16 kHz adjustable
Braking torque	150 % during 60 s with braking resistor 100 % with braking resistor continuously 150 % without braking resistor
Output voltage	<= power supply voltage
Tightening torque	Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6: 0.6...0.6 N.m L1, L2, L3, U, V, W, PA, PB, PA/+, PC/-: 2.5...2.5 N.m
Insulation	electrical between power and control
Analogue input type	AI1 configurable voltage 0...10 V, input voltage 30 V max, impedance: 30000 Ohm AI2 configurable voltage +/- 10 V, input voltage 30 V max, impedance: 30000 Ohm AI3 configurable current 0...20 mA, impedance: 250 Ohm
Sampling duration	AI1, AI2, AI3: 8 ms analog LI1...LI6: 4 ms discrete
Response time	AOV, AOC 8 ms for analog R1A, R1B, R1C, R2A, R2B 8 ms for discrete
Linearity error	+/- 0.2 % for output
Analogue output type	AOC configurable current: 0...20 mA, impedance: 800 Ohm, resolution: 8 bits AOV configurable voltage: 0...10 V, impedance: 470 Ohm, resolution: 8 bits
Discrete input logic	logic input not wired (LI1...LI4), < 13 V (state 1) negative logic (source) (LI1...LI6), > 19 V (state 0) positive logic (source) (LI1...LI6), < 5 V (state 0), > 11 V (state 1)
Discrete output type	configurable relay logic: (R1A, R1B, R1C) 1 NO + 1 NC - 100000 cycles configurable relay logic: (R2A, R2B) NC - 100000 cycles
Minimum switching current	R1-R2 10 mA at 5 V DC
Maximum switching current	R1-R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms R1-R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms R1-R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms R1-R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms
Discrete input type	(LI1...LI6) programmable at 24 V, 0-100 mA for PLC, impedance: 3500 Ohm
Time constant	5 ms for reference change
Frequency resolution	analog input: 0.1...100 Hz display unit: 0.1 Hz
Transmission rate	10, 20, 50, 125, 250, 500 kbps or 1 Mbps for CANopen 4800, 9600 or 19200 bps for Modbus
Number of addresses	1...127 for CANopen 1...247 for Modbus
Number of drive	127 for CANopen 31 for Modbus
Outer dimension	232 x 180 x 170 mm 405 x 234 x 268 mm 300 x 210 x 170 mm
Discrete input number	6
Discrete output number	2
Analogue input number	3
Analogue output number	1
Physical interface	RS485 multidrop serial link
Transmission frame	RTU
Asynchronous motor control profile	sensorless flux vector control with PWM type motor control signal factory set : constant torque
Transient overtorque	170...200 % of nominal motor torque
Acceleration and deceleration ramps	S, U or customized linear adjustable separately from 0.1 to 999.9 s
Motor slip compensation	automatic whatever the load suppressable adjustable
Nominal switching frequency	4 kHz
Braking to standstill	by DC injection
Network frequency	47.5...63 Hz
Prospective line isc	22 kA
Dielectric strength	2410 V DC between earth and power terminals 3400 V AC between control and power terminals
Protective treatment	TC
Vibration resistance	1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to EN/IEC 60068-2-27
Operating altitude	<= 1000 m without derating 1000...3000 m with current derating 1 % per 100 m
Operating position	vertical +/- 10 degree
Assembly style	with heat sink
Electromagnetic compatibility	1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Regulation loop	frequency PI regulator
Pollution degree	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	22.788 cm
Package 1 width	23.237 cm
Package 1 length	29.832 cm
Package 1 weight	6.1 kg
Unit type of package 2	S04
Number of units in package 2	2
Package 2 height	30 cm
Package 2 width	40 cm
Package 2 length	60 cm
Package 2 weight	13.37 kg
Unit type of package 3	PAL
Number of units in package 3	18
Package 3 height	77 cm
Package 3 width	60 cm
Package 3 length	80 cm
Package 3 weight	117 kg
Sustainable packaging	No
Product contributes to saved and avoided emissions	No
China rohs label	5
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
