Home ProductsIndustrialAltivarPlate for mounting on symmetrical DIN rail

Altivar 12 Plate for mounting on symmetrical DIN rail for variable speed drive, size 1

Item Number: VW3A9804

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480074851	-

Specifications

Design

Range of product	Altivar
Product compatibility	ATV12H018F1 ATV12HU15M2 ATV312H018M2 ATV312H018M3 ATV312H037M2 ATV312H037M3 ATV312H055M2 ATV312H075M2 ATV312H075M3 variable speed drive ATV320...C at 0.18 kW, 200...240 V, single phase variable speed drive ATV320...C at 0.37 kW, 200...240 V, single phase ATV12H018M2 variable speed drive ATV320...C at 0.55 kW, 200...240 V, single phase variable speed drive ATV320...C at 0.75 kW, 200...240 V, single phase ATV12H018M3 ATV12H037F1 ATV12H037M2 ATV12H037M3 ATV12H055M2 ATV12H075M2 ATV12H075M3
Warranty	18 months

Physical

Range compatibility	Altivar 312 Solar Altivar 12 Altivar 312 Altivar Machine ATV320
Mounting support	35 mm symmetrical DIN rail
Rohs exemption information	Yes
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	50
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Accessory / separate part category	mounting and fixing accessories
Accessory / separate part type	mounting plate
Accessory / separate part destination	variable speed drive
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.100 cm
Package 1 width	17.000 cm
Package 1 length	23.000 cm
Package 1 weight	316.000 g
Unit type of package 2	S06
Number of units in package 2	50
Package 2 height	75.000 cm
Package 2 width	60.000 cm
Package 2 length	80.000 cm
Package 2 weight	30.000 kg
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	5
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Technical Data Catalogues
Installation Instruction
eTechPub
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Discover the catalog of Altivar HVAC ATH200 variable speed drives

VERSION

1.0

DATE

19 Feb 2026

REVISION

1.0

DOWNLOAD (ZIP) 9 MB

ZIP

Discover the catalog for Altivar Machine ATV320 variable speed drive

VERSION

11.0

DATE

07 Jan 2026

REVISION

11.0

DOWNLOAD (ZIP) 11.2 MB

ZIP

Discover the catalog for Altivar Solar Variable Speed Drives

VERSION

2.0

DATE

19 Jun 2024

REVISION

2.0

DOWNLOAD (ZIP) 12.1 MB

ZIP

Discover catalogue for Altivar 312 variable speed drives

VERSION

3.0

DATE

29 Sep 2023

REVISION

3.0

DOWNLOAD (ZIP) 23.3 MB

ZIP

Altivar 12 Variable speed drives

VERSION

2.0

DATE

02 Aug 2022

REVISION

2.0

DOWNLOAD (ZIP) 3.7 MB

ZIP

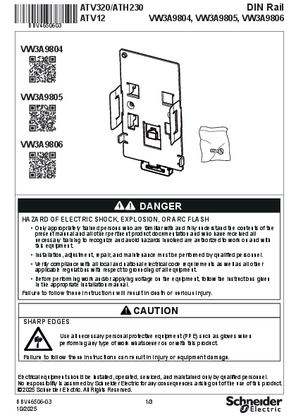

Instruction sheet Rail din kit - VW3A9804...806
