Altivar 32 Mechanical adaptor for 90°control mounting
Item Number: VW3A9920
Colour ()
- 1 PCE 0

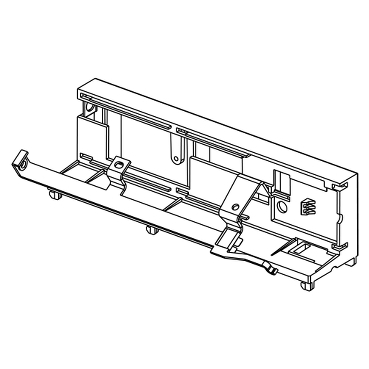

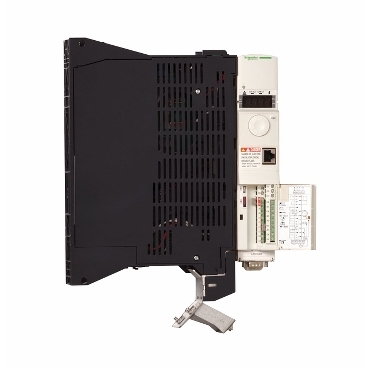

This mechanical device consists in an adapter for mounting the control module at 90°. This is used to mount the power module on the side of the drive, keeping the control module visible and accessible. It is compatible with Altivar 32.
Datasheet
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| - | |||
| - | |||
| - |
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| 1 | CAR | 3606480315596 | - |
Specifications
Design
| Range of product | Altivar |
|---|---|
| Product or component type | adaptor plate |
| Product compatibility |
|
Physical
| Range compatibility |
|
|---|---|
| Sale per indivisible quantity | 1 |
| Net weight | 0.125 kg |
| Reach free of svhc | Yes |
| Rohs exemption information | Yes |
| Eu rohs directive | Compliant By Exemption |
Others
| Life cycle assessment data | No |
|---|---|
| If one of the deliverables is not relevant please give the reason | Option |
| Legacy weee scope | Out |
| Package 1 bare product quantity | 1 |
| Package 2 bare product quantity | 56 |
| Average percentage of recycled plastic content | 0 % |
| At least in Europe | |
| Weee label | No |
| Weee applicability | Component |
| Weee exclusion rationale | Product/component not in scope – not electric/electronic device |
| Accessory / separate part category | mounting and fixing accessory |
| Accessory / separate part destination | control block |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 7.000 cm |
| Package 1 width | 17.000 cm |
| Package 1 length | 23.000 cm |
| Package 1 weight | 256.000 g |
| Unit type of package 2 | P06 |
| Number of units in package 2 | 56 |
| Package 2 height | 75.000 cm |
| Package 2 width | 60.000 cm |
| Package 2 length | 80.000 cm |
| Package 2 weight | 27.336 kg |
| Sustainable packaging | No |
| Take-back | No |
| Product contributes to saved and avoided emissions | No |
| Removable battery | N/A |
| Average percentage of recycled metal content | 0 % |
| Packaging made with recycled cardboard | No |
| Packaging without single use plastic | No |
| Take-back | No |
| Warranty (in months) | 18 |
Documents & downloads
-
All
-
Technical Data Catalogues
-

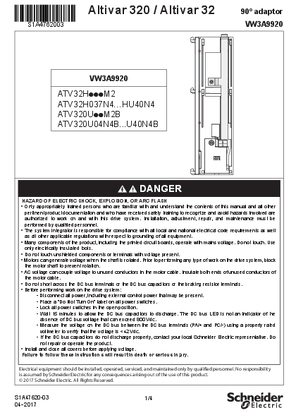

Installation Instruction
-
