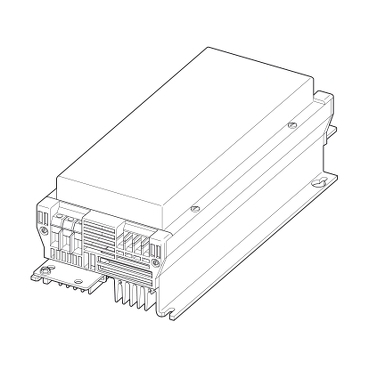

Altivar 31 Line/motor choke 2 mH, 17 A, 3 phases, 75 W, for variable speed drive

Item Number: VW3A4553

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width130 mm

Height155 mm

Depth90 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389118066038	-

Specifications

Design

Range of product

Altivar

Product or component type

line/motor choke

Product compatibility

variable speed drive ATV340 motor: 4 kW 380...480 V - line choke - 1 per drive
ATV31CU22M2 - motor choke - 1 per drive
ATV31CU55N4 - line choke - 1 per drive
ATV31CU55N4 - motor choke - 1 per drive
ATV31CU75N4 - line choke - 1 per drive
ATV61HD11Y - line choke - 1 per drive
ATV61HD15Y - line choke - 1 per drive
ATV61HU30M3 - line choke - 1 per drive
ATV61HU55N4 - line choke - 1 per drive
ATV61HU75N4 - line choke - 1 per drive
ATV61WU55N4 - line choke - 1 per drive
ATV61WU55N4C - line choke - 1 per drive
ATV61WU75N4 - line choke - 1 per drive
ATV61WU75N4C - line choke - 1 per drive
ATV71HD11Y - line choke - 1 per drive
ATV71HD15Y - line choke - 1 per drive
ATV71HU30M3 - line choke - 1 per drive
ATV71HU55N4 - line choke - 1 per drive
ATV71HU75N4 - line choke - 1 per drive
ATV71PU55N4Z - line choke - 1 per drive
ATV71PU75N4Z - line choke - 1 per drive
ATV71WU55N4 - line choke - 1 per drive
ATV71WU75N4 - line choke - 1 per drive
LXM05D42M3X - line choke - 1 per drive
ATV12HU22M2 - motor choke - 1 per drive
ATV12HU22M3 - motor choke - 1 per drive
ATV312HD11S6 - line choke - 1 per drive
ATV312HU22M3 - line choke - 1 per drive
ATV312HU30M3 - line choke - 1 per drive
ATV312HU55N4 - line choke - 1 per drive
ATV312HU75N4 - line choke - 1 per drive
ATV312HU75S6 - line choke - 1 per drive
ATV71HU75S6X - line choke - 1 per drive
ATV312HU22M3 - motor choke - 1 per drive
ATV312HU30M3 - motor choke - 1 per drive
ATV312HU55N4 - motor choke - 1 per drive
ATV312HU75S6 - motor choke - 1 per drive
ATV312HU22M2 - motor choke - 1 per drive
ATV12HU30M3 - motor choke - 1 per drive
ATV12PU22M3 - motor choke - 1 per drive
ATV12PU30M3 - motor choke - 1 per drive
ATV61HU75S6X - line choke - 1 per drive
ATV32HU55N4 - line choke - 1 per drive
ATV32HU75N4 - line choke - 1 per drive
ATV32HU22M2 - motor choke - 1 per drive
ATV32HU55N4 - motor choke - 1 per drive
LXM32.D12N4 - line choke - 1 per drive
LXM32.U60N4 - line choke - 1 per drive
variable speed drive ATV310 motor: 4 kW - line choke - 1 per drive
variable speed drive ATV310 motor: 5.5 kW - line choke - 1 per drive
variable speed drive ATV310 motor: 5.5 kW - motor choke - 1 per drive
variable speed drive ATV340 motor: 5.5 kW 380...480 V - line choke - 1 per drive
variable speed drive ATV340 motor: 7.5 kW 380...480 V - line choke - 1 per drive
variable speed drive ATV320 motor: 5.5 kW 380...500 V - three phase - line choke - 1 per drive
variable speed drive ATV320 motor: 7.5 kW 380...500 V - three phase - line choke - 1 per drive
variable speed drive ATV320 motor: 2.2 kW 200...240 V - single phase - motor choke - 1 per drive
variable speed drive ATV320 motor: 5.5 kW 380...500 V - three phase - motor choke - 1 per drive
variable speed drive ATV320 motor: 2.2 kW 200...240 V - three phase - line choke - 1 per drive
variable speed drive ATV320 motor: 3 kW 200...240 V - three phase - line choke - 1 per drive
variable speed drive ATV320 motor: 2.2 kW 200...240 V - three phase - motor choke - 1 per drive
variable speed drive ATV320 motor: 3 kW 200...240 V - three phase - motor choke - 1 per drive
variable speed drive ATV320 motor: 5.5 kW 525...600 V - three phase - line choke - 1 per drive
variable speed drive ATV320 motor: 7.5 kW 525...600 V - three phase - line choke - 1 per drive
variable speed drive ATV320 motor: 7.5 kW 525...600 V - three phase - motor choke - 1 per drive
variable speed drive ATV630 motor: 11 kW 500...690 V - three phase - line choke - 1 per drive
variable speed drive ATV630 motor: 15 kW 500...690 V - three phase - line choke - 1 per drive
variable speed drive ATV930 motor: 11 kW 500...690 V - three phase - line choke - 1 per drive
variable speed drive ATV930 motor: 15 kW 500...690 V - three phase - line choke - 1 per drive
variable speed drive ATV630 motor: 600 V - three phase - line choke - 10 hp - 1 per drive
variable speed drive ATV630 motor: 600 V - three phase - line choke - 15 hp - 1 per drive
variable speed drive ATV930 motor: 600 V - three phase - line choke - 10 hp - 1 per drive
variable speed drive ATV930 motor: 600 V - three phase - line choke - 15 hp - 1 per drive
variable speed drive ATV310L motor: 0.75 kW
variable speed drive ATV310L motor: 1.5 kW
variable speed drive ATV310L motor: 2.2 kW
variable speed drive ATV310L motor: 3.0 kW
variable speed drive ATV310L motor: 4.0 kW
variable speed drive ATV310L motor: 5.5 kW

Device application

reduction of current harmonics
reduction of overvoltages at motor terminals

Warranty

18 months

Physical

Range compatibility

Altivar 61
Altivar Process ATV900
Lexium 05
Altivar 312 Solar
Altivar Process ATV600
Altivar 32
Altivar 71
Lexium 62
Easy Altivar 310
Altivar 12
Altivar 31C
Lexium 52
Altivar 312
Lexium 32
Altivar Machine ATV320
Altivar Machine ATV340
Easy Altivar 310L

[in] rated current

17 A

Electrical insulation class

class F

Net weight

3.5 kg

Width

130 mm

Height

155 mm

Depth

90 mm

Standards

VDE 0160 level 1
EN 50178
IEC 60076 (with HD398)

Ip degree of protection

choke: IP00
terminals: IP20

Environmental characteristic

3B1 conforming to IEC 721-3-3
3C2 conforming to IEC 721-3-3
3S1 conforming to IEC 721-3-3

Relative humidity

0...95 %

Ambient air temperature for operation

45...55 °C (with current derating of 2 % per °C)
0...45 °C (without current derating)

Ambient air temperature for storage

-25...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 2 bare product quantity

Package 1 bare product quantity

Substance regulation data deliverable

Yes

If one of the deliverables is not relevant please give the reason

Accessory

Life cycle assessment data

Network number of phases

three phase

Value of inductance

2 mH

Thermal losses

75 W

Accessory / separate part category

protection accessories

Electrical connection

terminal 6 mm² / AWG 8, 0.8-1 N.m

Supply frequency

50...60 Hz

Max current

1.65 x nominal current (duration = 60 s)

Maximum voltage drop at rated load

5 %

Minimum clearance distance

5.5 mm IEC 60664

Leakage distance

11.5 mm conforming to IEC 60664

Pollution degree

2 conforming to EN 50178

Vibration resistance

1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Operating altitude

<= 1000 m without current derating
1000...3000 m with current derating 1 % per 100 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

19.000 cm

Package 1 width

24.000 cm

Package 1 length

25.000 cm

Package 1 weight

3.935 kg

Unit type of package 2

P06

Number of units in package 2

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

83.830 kg

Packaging made with recycled cardboard

Packaging without single use plastic

Scip number

4934d727-4a01-454e-b001-ddcc449d383b

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Minimum percentage of recycled plastic content

Show all specifications
