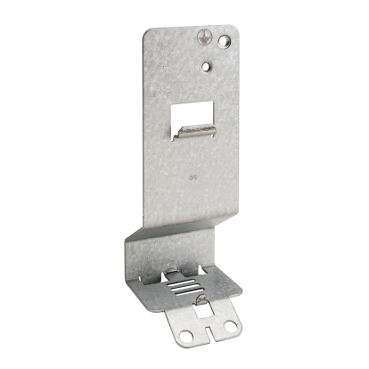

Altivar 32 Kit mechanical adaptor for direct circuit breaker mounting GV2AF5

Item Number: VW3A9921

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480315602	-
10	CAR	73606480315601	-

Specifications

Design

Range of product	Altivar
Product or component type	mounting kit
Product compatibility	variable speed drive ATV320...B, 0.18-2.2 kW, 200...240 V, single phase variable speed drive ATV320...B, 0.37-4 kW, 380...500 V, three phase variable speed drive ATV32, 0.18-2.2 kW, 200...240 V, single phase variable speed drive ATV32, 0.37-4 kW, 380...500 V, three phase
Warranty	18 months

Physical

Range compatibility	Altivar 32 Altivar Machine ATV320
Sale per indivisible quantity	10
Net weight	0.075 kg
Reach free of svhc	Yes
Rohs exemption information	Yes
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Package 1 bare product quantity	1
Legacy weee scope	Out
Package 2 bare product quantity	10
Package 3 bare product quantity	500
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Accessory / separate part category	mounting and fixing accessory
Accessory / separate part destination	GV2 circuit-breaker
Kit composition	adaptor plate
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.200 cm
Package 1 width	4.500 cm
Package 1 length	13.500 cm
Package 1 weight	88.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	7.500 cm
Package 2 width	17.000 cm
Package 2 length	23.000 cm
Package 2 weight	887.000 g
Unit type of package 3	S06
Number of units in package 3	500
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	56.250 kg
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	5
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Technical Data Catalogues
Installation Instruction
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Discover the catalog for Altivar Machine ATV320 variable speed drive

VERSION

11.0

DATE

07 Jan 2026

REVISION

11.0

DOWNLOAD (ZIP) 11.2 MB

ZIP

Discover catalog for Altivar 32 Variable Speed Drives

VERSION

4.0

DATE

29 Sep 2023

REVISION

4.0

DOWNLOAD (ZIP) 4 MB

ZIP

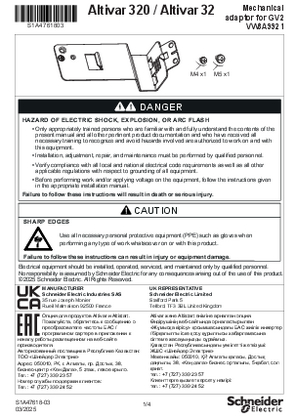

Instruction sheet - Adaptor plate for GV2 - VW3A9921
