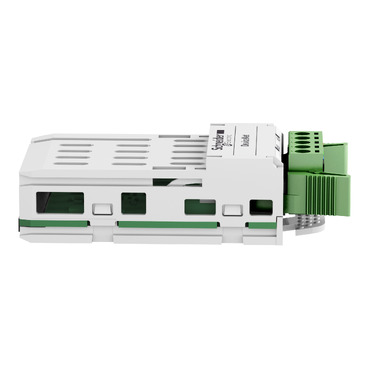

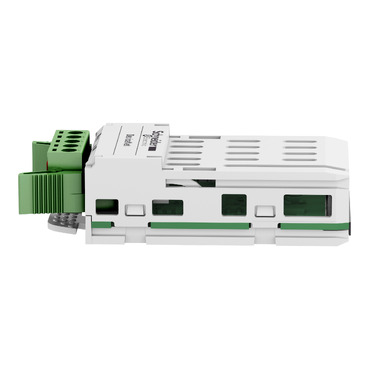

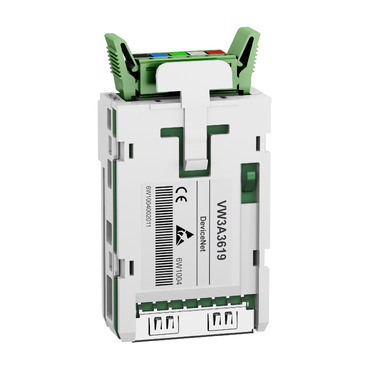

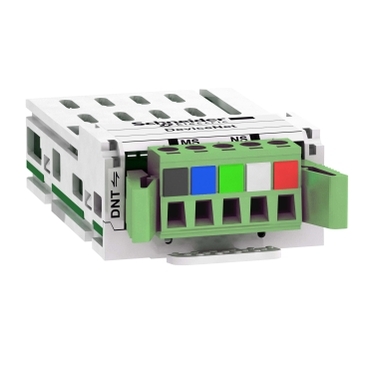

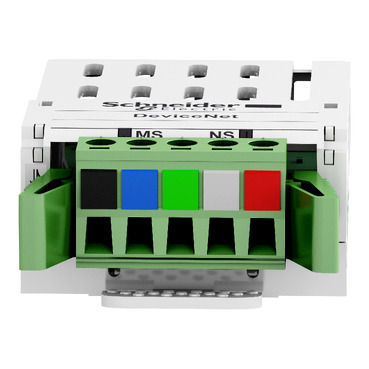

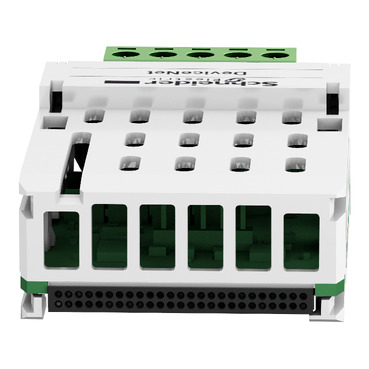

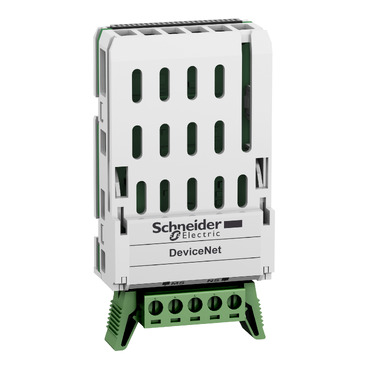

Altivar 32, Devicenet communication module

Item Number: VW3A3609

1 PCE 0

This DeviceNet communication module is an option for variable speed drives of Altivar range. It is equipped with a 5-way removable screw connector. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 300g.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480198991	-

Specifications

Design

Range of product	Altivar
Product or component type	communication module
Warranty	18 months

Physical

Range compatibility	Altivar Process Modular Altivar 32 Altivar Process ATV600 Altivar Machine ATV340 except Sercos drives Altivar Process ATV900 Altivar Machine ATV320
Communication port protocol	DeviceNet
Net weight	0.3 kg
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2010018EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of recycled plastic content	0 %
	At least in Europe
Package 2 bare product quantity	100
Package 1 bare product quantity	1
Legacy weee scope	Out
Substance regulation data deliverable	Yes
If one of the deliverables is not relevant please give the reason	Accessory
Life cycle assessment data	Yes
Warranty duration(in months) bmecat	18
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Electrical connection	1 connector 1 removable 5-way screw connector
Transmission rate	125 kbps, 250 kbps and 500 kbps configurable
Maximum cable distance between devices	100 m for 500 kbps 500 m for 125 kbps
Addressing	1...63 configurable by graphic terminal/SoMove software
Communication service	inputs : polled, change of state, cyclic outputs : polled ODVA AC drive and CiA 402 profile auto device replacement communication monitoring time out adjustable by DeviceNet configurator
Display type	1 LED for MS (Module Status) 1 LED for NS (Network Status)
Alarm function	control mode received by graphic terminal received instruction by graphic terminal
Bus profile	CIP AC Drive CiA 402
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.700 cm
Package 1 width	6.200 cm
Package 1 length	8.900 cm
Package 1 weight	67.000 g
Unit type of package 2	S03
Number of units in package 2	100
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	7.098 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Scip number	2a2f2e41-9976-44a1-aaef-cecaebe1de88
China rohs label	1
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Technical Data Catalogues
Installation Instruction
Environmental Disclosure
Operating Manuals
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)
Software - Data Library

Important: Some software files may need a mySchneider or Club login to download.

PDF

Altivar Process variable speed drives

VERSION

1.0

DATE

17 Nov 2015

REVISION

1.0

Colour ()

Altivar 32, Devicenet communication module

Item Number: VW3A3609

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

Product Brochures

Technical Data Catalogues

Installation Instruction

Environmental Disclosure

Operating Manuals

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

Software - Data Library

Altivar Process variable speed drives

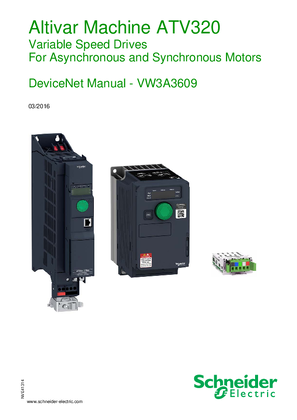

Discover the catalog for Altivar Machine ATV320 variable speed drive

Discover catalog for Altivar Process ATV600 variable speed drives

Discover the catalog for Altivar Machine ATV340

Discover catalog for Altivar Process ATV900 variable speed drives

Discover catalog for Altivar 32 Variable Speed Drives

Instruction sheet - Option modules

Altivar 31, 312, and 32 Motor Cable Installation Guidelines for Baggage Conveyance Applications

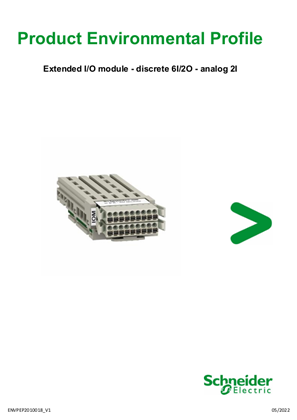

Extended I/O module - discrete 6I/2O - analog 2I, Product Environmental Profile

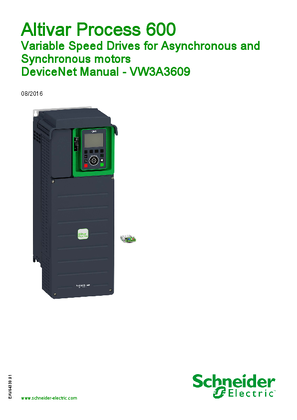

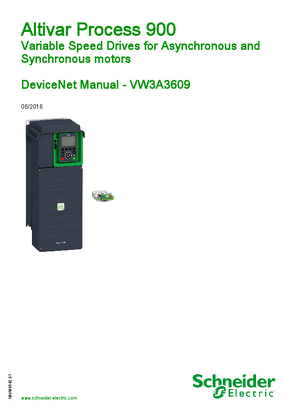

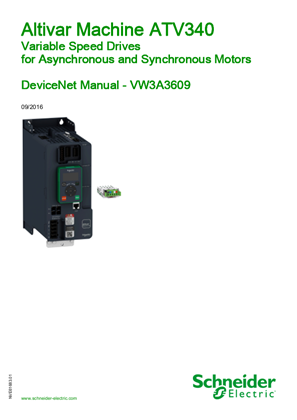

ATV900 DeviceNet Manua (VW3A3609)

ATV600 DeviceNet Manual : VW3A3609

ATV340 DeviceNet Manual : VW3A3609

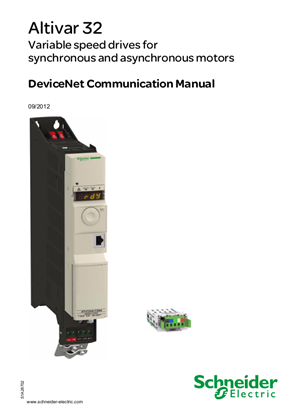

ATV32 DeviceNet Manual: VW3A3609

VW3A Drives Option EAC Certificate

ATV630 DEVICENET CERTIFICATE

ATV340 DEVICENET CERTIFICATE

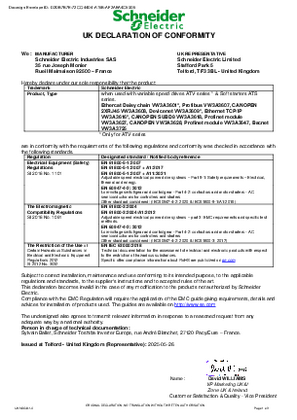

VW3A36xx-VW3A3725 UK Declaration

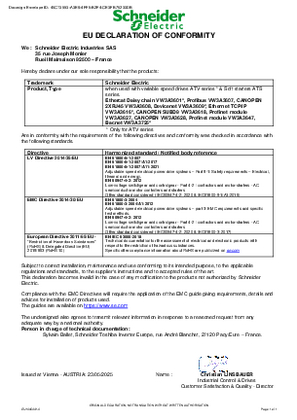

VW3A36xx-VW3A3725 EU Declaration
