Altivar 312 DeviceNet communication card 500 kbps

Home ProductsIndustrialAltivarDeviceNet communication card

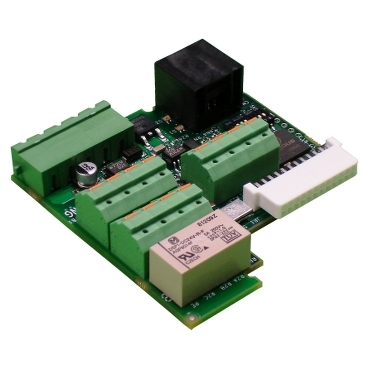

Altivar 312 DeviceNet communication card 500 kbps

Item Number: VW3A31209

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

communication card

Warranty

18 months

Physical

Range compatibility

  • Altivar 312 Solar
  • Altivar 312

Communication port protocol

DeviceNet

Net weight

0.2 kg

Reach free of svhc

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

X

Eu rohs directive

Compliant

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

At least in Europe

Warranty duration(in months) bmecat

18

Weee label

No

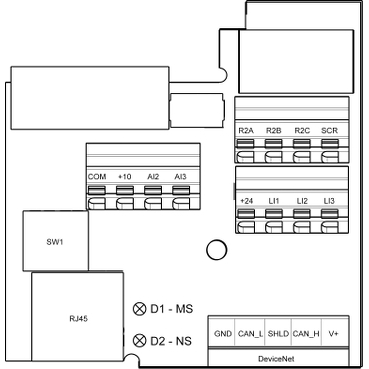

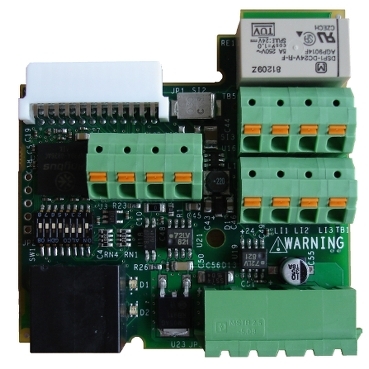

Electrical connection

  • 1 connector RJ45, Modbus
  • 1 removable screw terminal block for inputs/outputs
  • 5-way screw connector, DeviceNet

Transmission rate

125 kbps, 250 kbps or 500 kbps

Number of addresses

1...63

Input/output number

  • AI2 and AI3: 2 analog input
  • LI1...LI3: 3 logic input
  • R2: 1 relay output

Communication service

  • periodic variables ODVA AC drive type profile 20, 21, 70 and 71
  • periodic variables ATV 312 native profile (CiA 402) 100 and 101
  • periodic exchange mode on outputs : polled
  • communication monitoring can be inhibited
  • periodic exchange mode on inputs : polled, change of state, cyclic
  • no auto device replacement

Display type

1 dual colour LED for MNS (status)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.2 cm

Package 1 width

17 cm

Package 1 length

23 cm

Package 1 weight

164 g

Sustainable packaging

No

China rohs label

5

Warranty (in months)

18
Show all specifications
