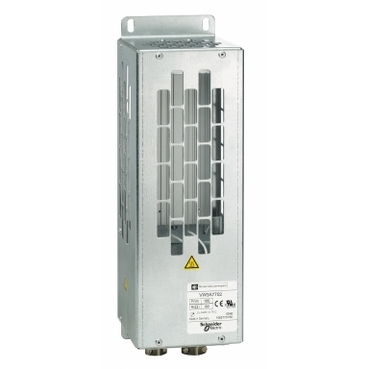

Altivar 320 Braking resistor IP20, 60Ohm, 100W

Home ProductsIndustrialAltivarBraking resistor

Altivar 320 Braking resistor IP20, 60Ohm, 100W

Item Number: VW3A7702

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width95 mm

Height icon

Height293 mm

Depth icon

Depth95 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Altivar

Product compatibility

  • ATV31CU22M2
  • ATV12HU22M2
  • ATV12HU22M3
  • ATV12PU22M3
  • ATV312HU22M2
  • ATV312HU22M3
  • ATV312HU30M3
  • ATV312HU55N4
  • ATV312HU55S6
  • ATV312HU75N4
  • ATV312HU75S6
  • ATV31CU55N4
  • ATV31CU75N4
  • ATV32HU22M2
  • ATV32HU55N4
  • ATV32HU75N4
  • ATV61HD11Y
  • ATV61HD15Y
  • ATV61HU15M3
  • ATV61HU22M3
  • ATV61HU22S6X
  • ATV61HU30S6X
  • ATV61HU40S6X
  • ATV61HU55N4
  • ATV61HU55S6X
  • ATV61HU75N4
  • ATV61HU75S6X
  • ATV61WD11N4
  • ATV61WD11N4C
  • ATV61WU75N4
  • ATV61WU75N4C
  • ATV71HD11Y
  • ATV71HU15M3
  • ATV71HU15S6X
  • ATV71HU22M3
  • ATV71HU22S6X
  • ATV71HU30S6X
  • ATV71HU40S6X
  • ATV71HU55N4
  • ATV71HU55S6X
  • ATV71HU75N4
  • ATV71HU75S6X
  • ATV71HU75Y
  • ATV71PU55N4Z
  • ATV71PU75N4Z
  • ATV71WU55N4
  • ATV71WU75N4
  • variable speed drive ATV310 at 5.5 kW
  • variable speed drive ATV310 at 7.5 kW

Warranty

18 months

Physical

Range compatibility

  • Altivar 31C
  • Altivar 312 Solar
  • Altivar 32
  • Altivar 61
  • Altivar 312

[ue] rated operational voltage

  • 24 V DC at 0.1 A
  • 250 V AC at 1 A

Contact resistance

60 µOhm

Protection type

thermal protection via drive or temperature control switch at 120 °C

Width

95 mm

Height

293 mm

Depth

95 mm

Net weight

2.4 kg

Ip degree of protection

IP20

Ambient air temperature for storage

-25...70 °C

Ambient air temperature for operation

0...50 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Package 2 bare product quantity

6

Package 1 bare product quantity

1

Ohmic value

60 Ohm

Average power available

  • 100 W at 50 °C
  • 115 W at 40 °C

Electrical connection

  • terminal, connection capacity: <= 1.5 mm² / AWG 16 for temperature control switch
  • terminal, connection capacity: <= 4 mm² / AWG 28 for drive

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

21.500 cm

Package 1 width

20.000 cm

Package 1 length

50.500 cm

Package 1 weight

2.621 kg

Unit type of package 2

S06

Number of units in package 2

6

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

28.726 kg

Packaging without single use plastic

No

Packaging made with recycled cardboard

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Minimum percentage of recycled plastic content

0
