Altivar 320 Braking resistor IP20, 100Ohm, 50W

Item Number: VW3A7701

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width95 mm

Height293 mm

Depth95 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389118065734	-

Specifications

Design

Range of product	Altivar
Product compatibility	ATV31C018M2 ATV31C037M2 ATV31C037N4 ATV31C055M2 ATV31C055N4 ATV31C075M2 ATV31C075N4 ATV31CU11M2 ATV31CU11N4 ATV31CU15M2 ATV31CU15N4 ATV31CU22N4 variable speed drive ATV310 at 1.5 kW variable speed drive ATV310 at 2.2 kW ATV31CU30N4 ATV31CU40N4 variable speed drive ATV310 at 3 kW variable speed drive ATV310 at 4 kW ATV12H018F1 ATV12H018M2 ATV12H018M3 ATV12H037F1 ATV12H037M2 ATV12H037M3 ATV12H055M2 ATV12H075F1 ATV12H075M2 ATV12H075M3 ATV12HU15M2 ATV12HU15M3 ATV12P037F1 ATV12P037M2 ATV12P037M3 ATV12P055M2 ATV12P075M2 ATV12P075M3 ATV12PU15M3 ATV312H018M2 ATV312H018M3 ATV312H037M2 ATV312H037M3 ATV312H037N4 ATV312H055M2 ATV312H055M3 ATV312H055N4 ATV312H075M2 ATV312H075M3 ATV312H075N4 ATV312HU11M2 ATV312HU11M3 ATV312HU11N4 ATV312HU15M2 ATV312HU15M3 ATV312HU15N4 ATV312HU22N4 ATV312HU30N4 ATV312HU40N4 ATV32H018M2 ATV32H037M2 ATV32H037N4 ATV32H055M2 ATV32H055N4 ATV32H075M2 ATV32H075N4 ATV32HU11M2 ATV32HU11N4 ATV32HU15M2 ATV32HU15N4 ATV32HU22N4 ATV32HU30N4 ATV32HU40N4 ATV61H075M3 ATV61H075N4 ATV61HU15N4 ATV61HU22N4 ATV61HU30N4 ATV61HU30Y ATV61HU40N4 ATV61HU40Y ATV61HU55Y ATV61HU75Y ATV61W075N4 ATV61W075N4C ATV61WU15N4 ATV61WU15N4C ATV61WU22N4 ATV61WU22N4C ATV61WU30N4 ATV61WU30N4C ATV61WU40N4 ATV61WU40N4C ATV61WU55N4 ATV61WU55N4C ATV71H037M3 ATV71H075M3 ATV71H075N4 ATV71HU15N4 ATV71HU22N4 ATV71HU22Y ATV71HU30N4 ATV71HU30Y ATV71HU40N4 ATV71HU40Y ATV71HU55Y ATV71P075N4Z ATV71PU40N4Z ATV71W075N4 ATV71WU40N4 ATV71PU15N4Z ATV71PU22N4Z ATV71WU15N4 ATV71WU22N4 ATV71PU30N4Z ATV71WU30N4
Warranty	18 months

Physical

Range compatibility	Altivar 312 Altivar 61 Altivar 312 Solar Altivar 32 Altivar 31C
[ue] rated operational voltage	24 V DC at 0.1 A 250 V AC at 1 A
Contact resistance	60 µOhm
Protection type	thermal protection via drive or temperature control switch at 120 °C
Width	95 mm
Height	293 mm
Depth	95 mm
Net weight	1.9 kg
Ip degree of protection	IP20
Ambient air temperature for storage	-25...70 °C
Ambient air temperature for operation	0...50 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	9
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Ohmic value	100 Ohm
Average power available	50 W at 50 °C 58 W at 40 °C
Electrical connection	terminal, connection capacity: <= 1.5 mm² / AWG 16 for temperature control switch terminal, connection capacity: <= 4 mm² / AWG 28 for drive
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	21.500 cm
Package 1 width	20.500 cm
Package 1 length	39.000 cm
Package 1 weight	1.957 kg
Unit type of package 2	P06
Number of units in package 2	9
Package 2 height	58.000 cm
Package 2 width	60.000 cm
Package 2 length	80.000 cm
Package 2 weight	30.442 kg
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Technical Data Catalogues
Installation Instruction
eTechPub
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Catalog: Altivar 71/71 Plus variable speed drives - English version 2014/04 (web pdf format)

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 10.7 MB

ZIP

Discover catalog for Altivar 32 Variable Speed Drives

VERSION

4.0

DATE

29 Sep 2023

REVISION

4.0

DOWNLOAD (ZIP) 4 MB

ZIP

Discover catalogue for Altivar 31C variable speed drives

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 6.9 MB

ZIP

Catalog: Altivar 61/61 Plus variable speed drives - English version 2014/04 (web pdf format)

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 9 MB

ZIP

Discover catalogue for Altivar 312 variable speed drives

VERSION

3.0

DATE

29 Sep 2023

REVISION

3.0

DOWNLOAD (ZIP) 23.3 MB

ZIP

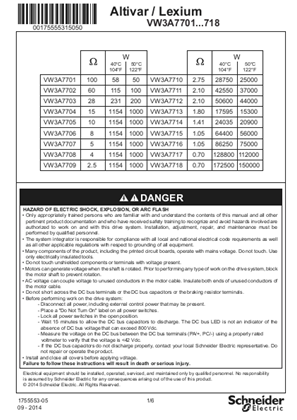

Instruction Sheet - Braking resistors - VW3A7701-718
