Altistart 22, Soft starter, ATS22 control 220V power 230V(15kW)/400...440V(30kW)

Altistart 22, Soft starter, ATS22 control 220V power 230V(15kW)/400...440V(30kW)

Item Number: ATS22D62Q

Datasheet

Product Dimensions

Width icon

Width145 mm

Height icon

Height295 mm

Depth icon

Depth207 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Altistart 22

Product or component type

soft starter

Product destination

asynchronous motors

Warranty

18 months

Physical

Ip degree of protection

IP20

Function available

internal bypass

Output current

0.4...1 Icl adjustable

Communication port protocol

Modbus

Connector type

1 RJ45

Protection type

phase failure: line|thermal protection: motor|thermal protection: starter

Marking

CE

Height

295 mm

Width

145 mm

Depth

207 mm

Net weight

12 kg

Standards

IEC 60947-4-2

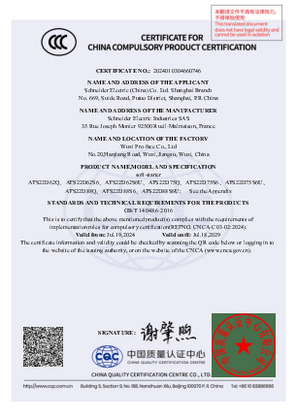

Product certifications

C-Tick|CCC|UL|CSA|GOST

Relative humidity

0...95 % without condensation or dripping water conforming to IEC 60068...2-3

Ambient air temperature for operation

-10...40 °C (without derating)|40...60 °C (with current derating 2.2 % per °C)

Ambient air temperature for storage

-25...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

End of commercialization (planned, announced or effective)

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Product specific application

pumps and fans

Component name

ATS22

Network number of phases

3 phases

[us] rated supply voltage

230...440 V - 15...10 %

Motor power kw

15 kW 230 V|30 kW 400 V|30 kW 440 V

Factory setting current

57 A

Power dissipation in w

59 W for standard applications

Utilisation category

AC-53A

Type of start

start with torque control (current limited to 3.5 In)

Icl starter rating

62 A for connection in the motor supply line for standard applications

Assembly style

with heat sink

Supply voltage limits

195...484 V

Supply frequency

50...60 Hz - 10...10 %

Network frequency

45...66 Hz

Device connection

to the motor delta terminals|in the motor supply line

[uc] control circuit voltage

230 V - 15...10 % 50/60 Hz

Control circuit consumption

20 W

Discrete output number

2

Discrete output type

relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O|relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O

Minimum switching current

100 mA at 12 V DC (relay outputs)

Maximum switching current

5 A 250 V AC resistive 1 relay outputs|5 A 30 V DC resistive 1 relay outputs|2 A 250 V AC inductive 0.4 20 ms relay outputs|2 A 30 V DC inductive 7 ms relay outputs

Discrete input number

3

Discrete input type

(LI1, LI2, LI3) logic, 5 mA 4.3 kOhm

Discrete input voltage

24 V <= 30 V

Discrete input logic

positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA

Ptc probe input

750 Ohm

Communication data link

serial

Physical interface

RS485 multidrop

Transmission rate

4800, 9600 or 19200 bps

Installed device

31

Type of cooling

forced convection

Operating position

vertical +/- 10 degree

Power range

15...25 kW at 200...240 V 3 phases|30...50 kW at 380...440 V 3 phases

Motor starter type

soft starter

Electromagnetic compatibility

conducted and radiated emissions level A conforming to IEC 60947-4-2|damped oscillating waves level 3 conforming to IEC 61000-4-12|electrostatic discharge level 3 conforming to IEC 61000-4-2|immunity to electrical transients level 4 conforming to IEC 61000-4-4|immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3|voltage/current impulse level 3 conforming to IEC 61000-4-5

Vibration resistance

1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6|1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Noise level

45 dB

Pollution degree

level 2 conforming to IEC 60664-1

Operating altitude

<= 1000 m without derating|> 1000...< 2000 m with current derating of 2.2 % per additional 100 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

31.0 cm

Package 1 width

23.5 cm

Package 1 length

36.0 cm

Package 1 weight

8.262 kg

Unit type of package 2

P06

Number of units in package 2

6

Package 2 height

73.5 cm

Package 2 width

80.0 cm

Package 2 length

60.0 cm

Package 2 weight

64.0 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
