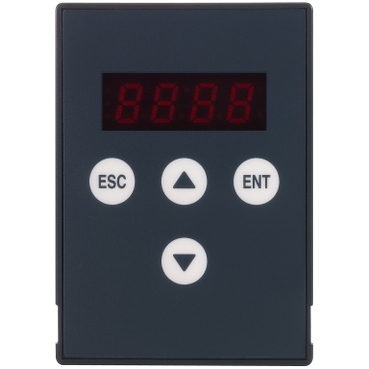

Altistart 22 Remote terminal ATS22, for soft starter for asynchronous motor, IP65

Item Number: VW3G22102

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480179327	-

Specifications

Design

Range of product	Altistart 22
Product compatibility	ATS22
Warranty	18 months

Physical

Ip degree of protection	IP65
Net weight	0.275 kg
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	8
Weee exclusion rationale	Component not in scope – non independent function
Weee applicability	Component
Weee label	No
Warranty duration(in months) bmecat	18
	At least in Europe
Average percentage of recycled plastic content	0 %
Accessory / separate part designation	remote terminal
Accessory / separate part type	remote terminal
Accessory / separate part category	control accessories
Accessory / separate part destination	soft starter for asynchronous motor
Accessory dimension	50 x 15 x 70 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.000 cm
Package 1 width	17.000 cm
Package 1 length	23.200 cm
Package 1 weight	223.000 g
Unit type of package 2	S03
Number of units in package 2	8
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	2.510 kg
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	7161d12e-f65a-43f1-970c-ddc6260d9e62
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Installation Instruction
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Altistart 22 soft start - soft stop unit - Remote display terminal - 3D CAD

VERSION

1.0

DATE

19 Jan 2022

REVISION

1.0

DOWNLOAD (ZIP) 657.5 KB

ZIP

Catalog: Soft start/soft stop units Altistart 22

VERSION

2.0

DATE

02 Aug 2022

REVISION

2.0

DOWNLOAD (ZIP) 2.6 MB

ZIP

Altistart 22 Soft Starters in Motor Control Centers - Installation Instructions

VERSION

1.1

DATE

16 Jun 2026

REVISION

1.1

DOWNLOAD (ZIP) 331.8 KB

ZIP

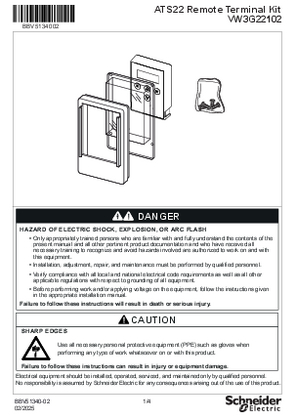

Instruction Sheet - ATS22 terminal IP65 - VW3G22102
