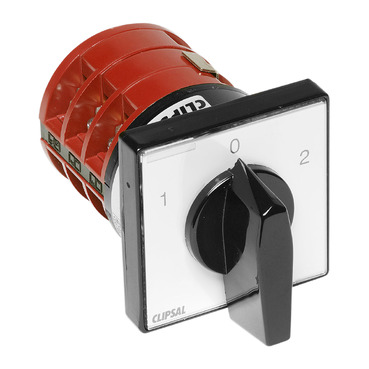

7 Series Cam Switches Reversing Switch 3 Pole, with Off Marked 1-O-2
Item Number: 7GN32/11/U
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Series 7
Physical
Switch function
3-way
Connector type
screw terminals
Number of poles
3
Eu rohs directive
Under investigation
Others
Legacy weee scope
In
Outside of Europe
Weee label
N/A
Electrical circuit type
changeover contactor
Mounting holes diameter
14 mm
[us] rated supply voltage
415 V DC
Number of contacts
3
[ith] conventional free air thermal current
32 A
Rated operational power in w
15 kW
Switching angle
60 °
Fuse type
- 10-10 kA, gG
- 10-10 kA, gL
Maximum short-circuit current
40 A
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
