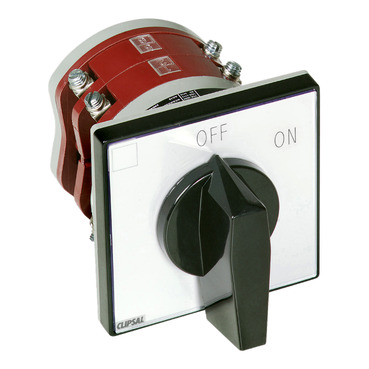

7 Series Cam Switches Operation Switch 3 Pole, Marked Off-On

Item Number: 7G80/D10/U

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318794050752	-

Specifications

Design

Product brand	Clipsal
Range of product	Series 7

Physical

Switch function	2-way
Connector type	screw terminals
Number of poles	3

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Electrical circuit type	changeover contactor
Mounting holes diameter	12 mm
[us] rated supply voltage	415 V DC
Number of contacts	2
[ui] rated insulation voltage	660 V AC
[ith] conventional free air thermal current	80 A
Rated operational power in w	37 kW
Switching angle	60 °
Fuse type	10-10 kA, gG 10-10 kA, gL
Maximum short-circuit current	80 A
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 weight	0.68 kg
Sustainable packaging	No
Warranty (in months)	18

Show all specifications
