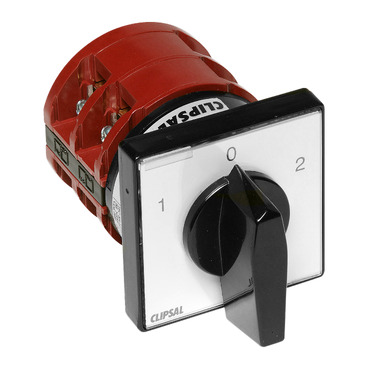

7 Series Cam Switches, Changeover Switch, 2 Pole, with Off Marked 1-O-2

7 Series Cam Switches, Changeover Switch, 2 Pole, with Off Marked 1-O-2

Item Number: 7GN63/52/U

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 7

Physical

Switch function

3-way

Connector type

screw terminals

Number of poles

2

Eu rohs directive

Under investigation

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Electrical circuit type

changeover contactor

Mounting holes diameter

14 mm

[us] rated supply voltage

415 V DC

Number of contacts

3

[ith] conventional free air thermal current

63 A

Rated operational power in w

15 kW

Switching angle

60 °

Fuse type

10-10 kA, gG|10-10 kA, gL

Maximum short-circuit current

63 A

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.2 cm

Package 1 width

7.2 cm

Package 1 length

14.5 cm

Package 1 weight

303 g
