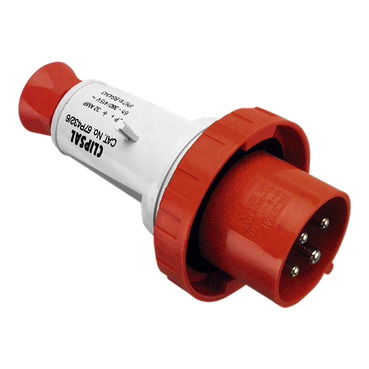

67 Series Plugs and Extension Sockets Plugs 380/415V, 32A, 6 Hour, 4 Pins
Item Number: 67P432/6
Datasheet
Close
Specifications
Design
Range of product
Series 67
Product brand
Clipsal
Physical
[in] rated current
32 A
[ue] rated operational voltage
400 V 50/60 Hz conforming to EN 60309-2
Cable entry
cable gland
Rohs exemption information
Yes
Environmental disclosure
ENVPEP121020EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Voltage colour
red
Plug, socket, control station shape
straight
Duration
6 h
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.4 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
