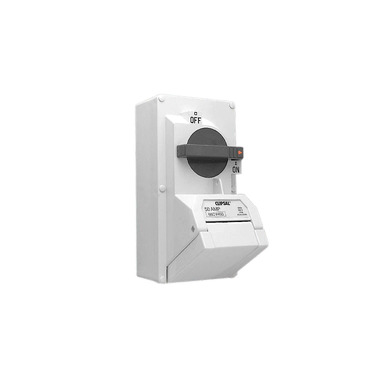

66 Series Switched Socket Outlet 500V, 50A, 4 Round PIN | Chemical Resistant Grey
Item Number: 66CV450-RG
Specifications
Design
Range of product
Series 66CV
Product brand
Clipsal
Device application
power supply
Physical
Number of poles
4
Number of power socket outlets
1 protective cover
[in] rated current
50 A
[ue] rated operational voltage
500 V AC
Depth
215 mm
Width
160 mm
Height
320 mm
Material
Material
plastic: housing
Others
Weee label
N/A
Outside of Europe
Package 1 bare product quantity
1
Legacy weee scope
In
Number of modules
3
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
21.5 cm
Package 1 width
16 cm
Package 1 length
32 cm
Package 1 weight
4.26 kg
Sustainable packaging
No
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-
Installation Instruction
-
Specification Guide
Important: Some software files may need a mySchneider or Club login to download.
ZIP
Installation Instructions - F2241/01 - RCD, RCBM, 4RC, and 4RCBM Series Residual Current Devices, Combination Residual Current Devices and Miniature Circuit Breakers, 20903
VERSION
1.0
DATE
02 Nov 2023
REVISION
1.0
DOWNLOAD (ZIP) 74.1 KB
ZIP
Installation Instructions - F940/04 - Switched Socket Outlets 66CV Series, 22999
VERSION
1.0
DATE
02 Nov 2023
REVISION
1.0
DOWNLOAD (ZIP) 91.3 KB
