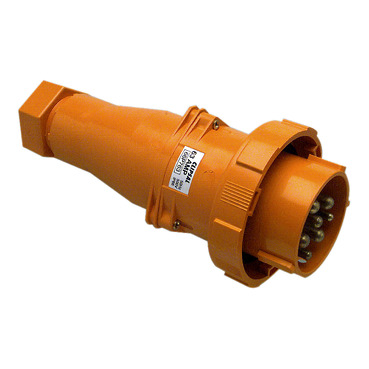

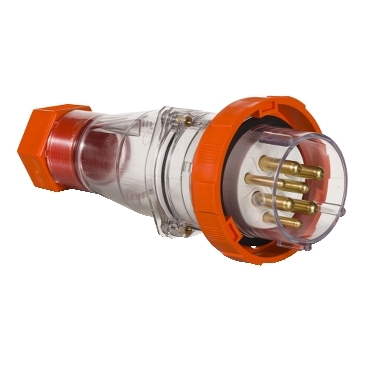

66 Series Heavy Duty Straight Plug IP66, 500V 63A - 7 Round Pins | Electric Orange
Item Number: 66P763-EO
Datasheet
Close
Specifications
Design
Range of product
Series 66P
Product brand
Clipsal
Colour
body: electric orange
Physical
[in] rated current
63 A
[ue] rated operational voltage
500 V 50/60 Hz conforming to EN 60309-2
Connections - terminals
screw terminal
Cable entry
cable gland
Eu rohs directive
Under investigation
Material
Material
plastic
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Voltage colour
black
Plug, socket, control station shape
straight
Duration
7 h
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
1.3 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-
Installation Instruction
-
Specification Guide
-
Declaration of Conformity (Sustainability)
Important: Some software files may need a mySchneider or Club login to download.
ZIP
Installation Instructions - F2241/01 - RCD, RCBM, 4RC, and 4RCBM Series Residual Current Devices, Combination Residual Current Devices and Miniature Circuit Breakers, 20903
VERSION
1.0
DATE
02 Nov 2023
REVISION
1.0
DOWNLOAD (ZIP) 74.1 KB
ZIP
Installation Instructions - F1027/02 - 66P Series Heavy Duty Plugs 4, 5 and 7 Pin, 50A, 63A and 80A Models, 21416
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 612.7 KB
