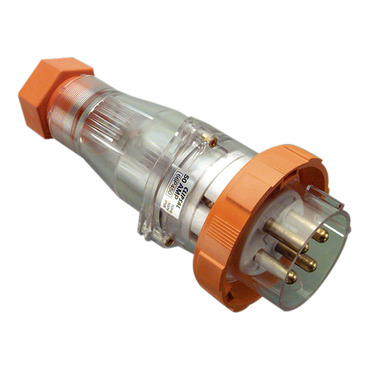

66 Series Heavy Duty Straight Plug IP66, 500V 50A - 4 Round Pins | Electric Orange
Item Number: 66P450-EO
Datasheet
Close
Specifications
Design
Range of product
Series 66P
Product brand
Clipsal
Colour
body: electric orange
Physical
[in] rated current
50 A
[ue] rated operational voltage
500 V 50/60 Hz conforming to EN 60309-2
Connections - terminals
screw terminal
Cable entry
cable gland
Rohs exemption information
Yes
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
plastic
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Voltage colour
black
Plug, socket, control station shape
straight
Duration
7 h
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
1.3 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-
Installation Instruction
-
Specification Guide
-
Declaration of Conformity (Sustainability)
Important: Some software files may need a mySchneider or Club login to download.
ZIP
Installation Instructions - F2241/01 - RCD, RCBM, 4RC, and 4RCBM Series Residual Current Devices, Combination Residual Current Devices and Miniature Circuit Breakers, 20903
VERSION
1.0
DATE
02 Nov 2023
REVISION
1.0
DOWNLOAD (ZIP) 74.1 KB
ZIP
Installation Instructions - F1027/02 - 66P Series Heavy Duty Plugs 4, 5 and 7 Pin, 50A, 63A and 80A Models, 21416
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 612.7 KB
