Clipsal - 56 Series, Timer Switch, 240VAC, 16A, 7 Day Quartz, Battery Reserve

Home ProductsIndustrial56 SeriesTimer Switch

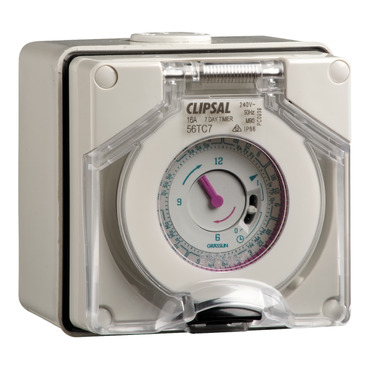

Clipsal - 56 Series, Timer Switch, 240VAC, 16A, 7 Day Quartz, Battery Reserve Grey

Item Number: 56TC7-GY

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width101 mm

Height icon

Height101 mm

Depth icon

Depth102 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

time switch

Device application

control

Colour

grey (RAL 7035)

Market segment

<ul><li>industry</li><li>small commercial</li><li>utility</li></ul>

Physical

Device presentation

basic element with full cover plate

Device mounting

surface

Local signalling

without

[ue] rated operational voltage

250 V AC 50 Hz

Rated current

16 A

Protection type

without protection

Marking

without marking

Height

101 mm

Width

101 mm

Depth

102 mm

Net weight

0.6 kg

Ambient air temperature for operation

-25...75 °C

Outlet standard

industrial

Ip degree of protection

IP66 conforming to AS 60529

Standards

<ul><li>AS/NZS 3133</li><li>AS/NZS 3123</li></ul>

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Material

Material

polycarbonate: cover

Contacts material

pins: phosphor bronze

Others

Package 1 bare product quantity

1

Outlet standard deviation

Australian/New Zealand

Plug, socket category

low voltage

Poles description

1P + N + E

Targeted country

Australia

Plug, socket, control station shape

<ul><li>angled</li><li>straight</li></ul>

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.3 cm

Package 1 width

10.5 cm

Package 1 length

10.6 cm

Package 1 weight

598.6 g
Show all specifications
