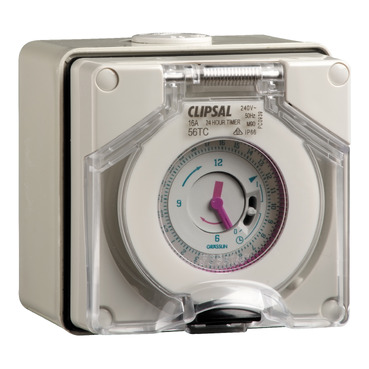

Clipsal - 56 Series Timer Switch 240VAC, 16A, 24h Quartz, Battery Reserve | Grey
Item Number: 56TC-GY
Specifications
Design
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | time switch |
| Device application | control |
| Colour | grey (RAL 7035) |
| Market segment |
|
Physical
| Device presentation | basic element with full cover plate |
|---|---|
| Device mounting | surface |
| Local signalling | without |
| [ue] rated operational voltage | 250 V AC 50 Hz |
| Rated current | 16 A |
| Protection type | without protection |
| Marking | without marking |
| Height | 101 mm |
| Width | 101 mm |
| Depth | 102 mm |
| Net weight | 0.6 kg |
| Ambient air temperature for operation | -25...75 °C |
| Outlet standard | industrial |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate: cover |
|---|---|
| Contacts material | pins: phosphor bronze |
