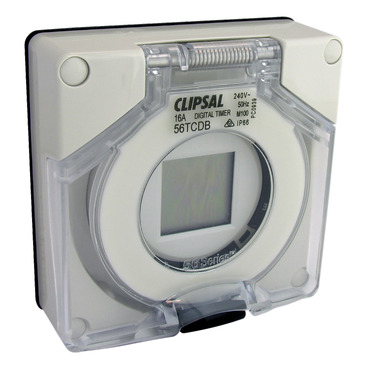

Clipsal - 56 Series Timer Surf IP66 16A Digital Less Enclosure | Grey
Item Number: 56TCDBLE-GY
Datasheet
Close
Specifications
Design
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | time switch |
| Device application | control |
| Colour tint | grey |
| Market segment |
|
Physical
| Device presentation | basic element with full cover plate |
|---|---|
| Device mounting | surface |
| Ip degree of protection | IP66 |
| Local signalling | without |
| [ue] rated operational voltage | 250 V AC 50 Hz |
| Rated current | 16 A |
| Marking | without marking |
| Height | 101 mm |
| Width | 101 mm |
| Net weight | 0.3 kg |
| Ambient air temperature for operation | -25...75 °C |
| Outlet standard | industrial |
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate: cover |
|---|
Documents & downloads
Filter items
-
All
-
Product Brochures
-
CAD Files and Packs
-
Installation Instruction
-
Declaration of Conformity (Sustainability)
ZIP
Installation Instructions - F2196/02- 56TCDB Series Programmable Digital Timer 56 Series, 27172
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 857.5 KB
ZIP
Installation Instructions - F2196/02 - 56 Series Programmable Digital Timer, 27172
VERSION
1.0
DATE
02 Aug 2022
REVISION
1.0
DOWNLOAD (ZIP) 1.2 MB
