Clipsal - 56 Series Switched Socket Vertical Interlocked, 5 PIN 20A | Grey
Item Number: 56CVI520-GY
Specifications
Design
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | socket-outlet |
| Device application | power supply |
| Market segment |
|
Physical
| Number of poles | 5 |
|---|---|
| Number of power socket outlets | 1 protective cover |
| [in] rated current | 20 A |
| [ue] rated operational voltage | 500 V AC 50 Hz |
| Protection type | without protection |
| Device mounting | surface |
| Connections - terminals | screw terminals cable(s) 2.5-16 mm² |
| Depth | 108 mm |
| Width | 101 mm |
| Height | 204 mm |
| Standards |
|
| Ambient air temperature for operation | -25...75 °C |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2511024EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate: cover |
|---|---|
| Contacts material | pins: phosphor bronze |
Documents & downloads
Filter items
-
All
-
Product Brochures
-
CAD Files and Packs
-
Technical Data Catalogues
-

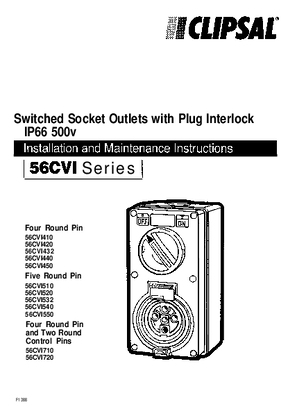

Installation Instruction
-
