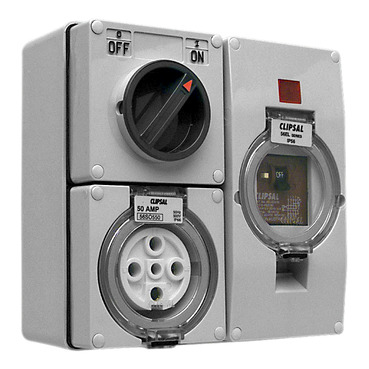

Clipsal - 56 Series, Switched Socket, RCD

Clipsal - 56 Series, Switched Socket, RCD GY

Item Number: 56C540RC-GY

Datasheet

Product Dimensions

Width icon

Width101 mm

Height icon

Height294 mm

Depth icon

Depth110 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal - 56 Series

Product or component type

socket-outlet with residual current device

Device application

power supply

Market segment

industry|small commercial|utility

Physical

Control type

push-button

[in] rated current

40 A

[ue] rated operational voltage

500 V AC 50 Hz

Number of gangs

3 gangs

Installation direction

vertical

Connections - terminals

screw terminal cable(s) 10-16 mm²

Mounting mode

surface mounted

Depth

110 mm

Width

101 mm

Height

294 mm

Net weight

1.88 kg

Ambient air temperature for operation

-25...75 °C

Ip degree of protection

IP66

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Material

Material

polycarbonate

Others

Package 1 bare product quantity

1

Network number of phases

3 phases

Targeted country

Australia

Earth-leakage protection class

class A

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.5 cm

Package 1 width

10.0 cm

Package 1 length

30.0 cm

Package 1 weight

1802.0 g

Unit type of package 2

CAR

Number of units in package 2

5

Package 2 height

30.0 cm

Package 2 width

23.0 cm

Package 2 length

37.0 cm

Package 2 weight

11.0 kg
