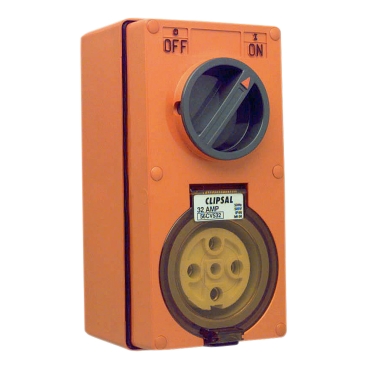

Clipsal - 56 Series Switched Socket Outlet 500V, 32A, 5 Round PIN, IP66, 3 Pole, Vertical | Grey

Item Number: 56CV532-GY

Grey 1 PCE 0
Chemical Resistant Orange 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width101 mm

Height204 mm

Depth108 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554198442	GY
12	CAR	19311554113664	GY
1	PCE	9311554236106	RO
12	CAR	19311554113657	RO

Specifications

Design

Range of product	Series 56
Range	Clipsal - 56 Series
Product brand	Clipsal
Product or component type	socket-outlet
Device application	power supply
Market segment	industry small commercial utility

Physical

Number of poles	5
Number of power socket outlets	1 protective cover
[in] rated current	32 A
[ue] rated operational voltage	500 V AC 50 Hz
Protection type	without protection
Device mounting	surface
Connections - terminals	screw terminals cable(s) 4-16 mm²
Depth	108 mm
Width	101 mm
Height	204 mm
Standards	AS/NZS 3123 AS/NZS 3133
Ambient air temperature for operation	-25...75 °C
Ip degree of protection	IP66 conforming to AS 60529
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511024EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	polycarbonate: cover
Contacts material	pins: phosphor bronze

Others

Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Plug, socket category	low voltage
Outlet standard deviation	Australian/New Zealand
Plug, socket, control station shape	straight
Number of modules	3
Poles description	3P + N + E
Electrical connection	industrial connector
Targeted country	Australia
Main colour tint	grey
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.3 cm
Package 1 width	11.5 cm
Package 1 length	20.6 cm
Package 1 weight	970 g
Unit type of package 2	CAR
Number of units in package 2	12
Package 2 height	21 cm
Package 2 width	34.8 cm
Package 2 length	44.5 cm
Package 2 weight	11640 g
Unit type of package 3	PAL
Number of units in package 3	480
Package 3 height	120 cm
Package 3 width	116.5 cm
Package 3 length	116.5 cm
Package 3 weight	499600 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	28 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	9.611332058572225
Carbon footprint of the manufacturing phase [a1 to a3]	10 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.2242543719165068
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.13508445991625742
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	16.93097502582249
Carbon footprint of the use phase [b2, b3, b4, b6]	17 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.9310361296152679
Carbon footprint of the end-of-life phase [c1 to c4]	0.9 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	27.83268204584275
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	2
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
