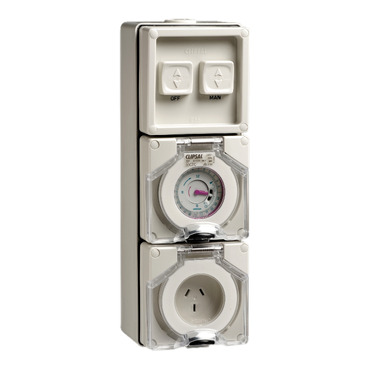

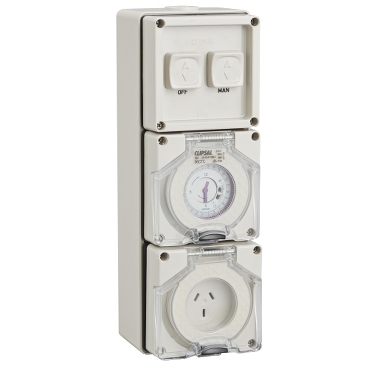

Clipsal - 56 Series Switched Socket Outlet 250V, 10A, 3 Flat PIN, IP66, Timer | Grey
Item Number: 56CTC-GY
Specifications
Design
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | socket-outlet |
| Device application | power supply |
| Market segment |
|
Physical
| Number of poles | 3 |
|---|---|
| Number of power socket outlets | 1 protective cover |
| [in] rated current | 10 A |
| [ue] rated operational voltage | 250 V AC 50 Hz |
| Protection type | without protection |
| Device mounting | surface |
| Connections - terminals | screw terminals cable(s) 2.5-6 mm² |
| Depth | 100 mm |
| Width | 101 mm |
| Height | 300 mm |
| Standards |
|
| Ambient air temperature for operation | -25...75 °C |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate: cover |
|---|---|
| Contacts material | pins: phosphor bronze |
