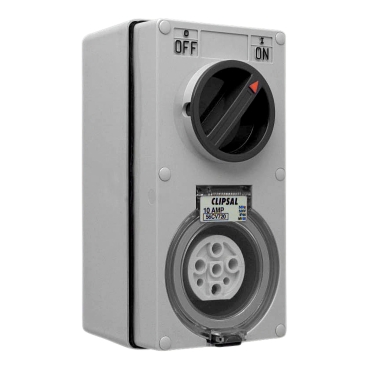

Clipsal - 56 Series, Switched Socket Interlocked Grey

Item Number: 56CVI720-GY

Datasheet

Product Dimensions

Width icon

Width102 mm

Height icon

Height198 mm

Depth icon

Depth103 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

socket-outlet

Device application

power supply

Market segment

small commercial|utility|industry

Physical

Number of poles

6

Number of power socket outlets

1 protective cover

[in] rated current

20 A

[ue] rated operational voltage

500 V AC 50 Hz

Protection type

without protection

Device mounting

surface

Connections - terminals

screw terminals cable(s) 2.5-16 mm²

Depth

103 mm

Width

102 mm

Height

198 mm

Standards

AS/NZS 3133|AS/NZS 3123

Ambient air temperature for operation

-25...75 °C

Ip degree of protection

IP66 conforming to AS 60529

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate: cover

Contacts material

pins: phosphor bronze

Others

Package 1 bare product quantity

1

Plug, socket category

low voltage

Outlet standard deviation

Australian/New Zealand

Plug, socket, control station shape

straight

Poles description

3P + N + E

Electrical connection

industrial connector

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.3 cm

Package 1 width

10.2 cm

Package 1 length

19.8 cm

Package 1 weight

0.144 kg
