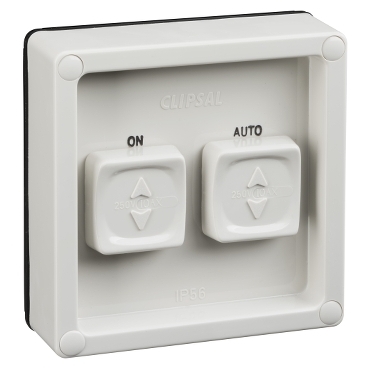

Clipsal - 56 Series Switch Surface IP66 2 Gang Single Pole 10A Less Enclosure | Grey
Item Number: 56SSW2AMLE-GY
Specifications
Design
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | switch |
| Device application | control |
| Market segment |
|
Physical
| Device presentation | basic element with full cover plate |
|---|---|
| Control type | sliding type |
| Number of poles | 1 |
| Device mounting | surface |
| Local signalling | without |
| [ue] rated operational voltage | 250 V AC 50 Hz |
| Rated current | 10 A |
| Marking | ON-OFF |
| Height | 107 mm |
| Width | 101 mm |
| Depth | 48 mm |
| Net weight | 0.16 kg |
| Switch function | 1-pole |
| Ambient air temperature for operation | -25...75 °C |
| Standards | AS/NZS 3133 |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1208009EN |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
