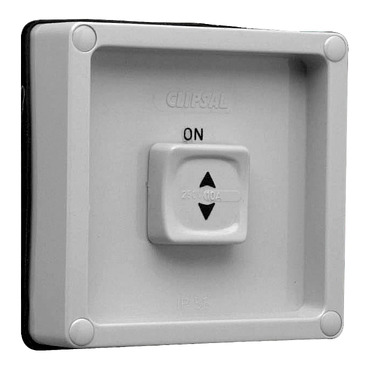

Clipsal - 56 Series, Surface Switch, IP66 1 Gang Single Pole 10A Less Enclosure

Clipsal - 56 Series, Surface Switch, IP66 1 Gang Single Pole 10A Less Enclosure Grey

Item Number: 56SSW10LE-GY

Datasheet

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth48 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

switch

Device application

control

Colour

cover: grey

Market segment

utility|industry|small commercial

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element with full cover plate

Control type

sliding type

Number of poles

1

Device mounting

surface

Local signalling

without

[ue] rated operational voltage

250 V AC 50 Hz

Rated current

10 A

Marking

ON-OFF

Height

107 mm

Width

101 mm

Depth

48 mm

Net weight

0.14 kg

Switch function

1-pole

Ambient air temperature for operation

-25...75 °C

Ip degree of protection

IP56 conforming to AS 60529

Standards

AS/NZS 3133

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120809EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Commercial status history

SESA301466 | Wed Sep 27 02:54:00 EDT 2023 | From Import Local | From 14 to 19

Package 1 bare product quantity

1

Handle colour

grey

Suitability for isolation

no

Poles description

1P

Tightening torque

0.8 N.m

Marking location

marking on surface

Targeted country

Australia

Motor m-rating as3133

M80 at 250 V

Rotary handle padlocking

2 padlocks 8-8 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.8 cm

Package 1 width

9.6 cm

Package 1 length

9.7 cm

Package 1 weight

139.6 g
