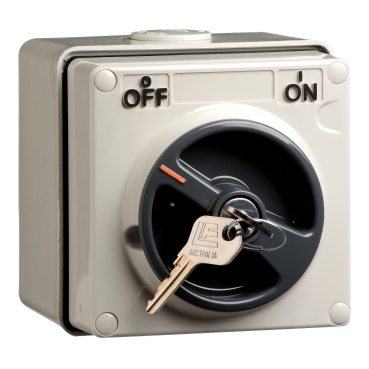

Clipsal - 56 Series Surface Switch 3 Pole, 500VAC, 50A, Common Key Lock, On/Off Locking Position | Grey
Item Number: 56K2SW350CK-GY
Specifications
Design
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | switch |
| Device application | control |
| Market segment |
|
Physical
| Device presentation | basic element with full cover plate |
|---|---|
| Control type | rotary knob |
| Number of poles | 3 |
| Device mounting | surface |
| Local signalling | without |
| [ue] rated operational voltage | 500 V AC 50 Hz |
| Rated current | 50 A |
| Marking | ON-OFF |
| Fixing mode | by screws |
| Height | 107 mm |
| Width | 101 mm |
| Depth | 112 mm |
| Net weight | 0.6 kg |
| Actuator | key |
| Switch function | 3-pole |
| Ambient air temperature for operation | -25...75 °C |
| Standards | AS/NZS 3133 |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
