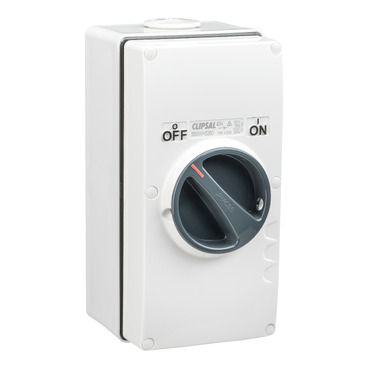

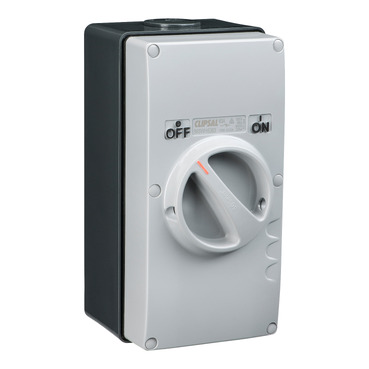

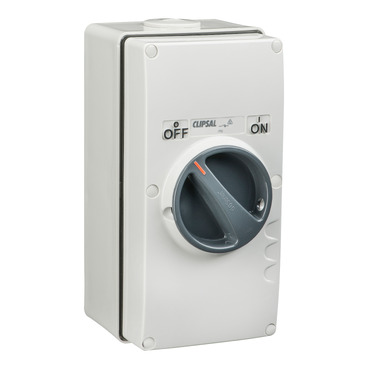

Clipsal - 56 Series, Surface Switch, 2 Gang Three Pole 63A Base Mount

Home ProductsIndustrial56 SeriesSurface Switch

Clipsal - 56 Series, Surface Switch, 2 Gang Three Pole 63A Base Mount Chemical Grey

Item Number: 56SWHS363-CG

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

Clipsal - 56 Series

Product or component type

switch

Colour

cover: chemical grey

Market segment

  • industry
  • small commercial
  • utility

Physical

Control type

rotary knob

[ue] rated operational voltage

500 V AC 50 Hz

Rated current

63 A

Ip degree of protection

IP66 conforming to AS 60529

Standards

AS/NZS 3133

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Handle colour

grey

Suitability for isolation

yes

Poles description

3P

Tightening torque

0.8 N.m

Breaking capacity

63 kA at 500 V (AC-21A)

Targeted country

Australia

Motor m-rating as3133

M320 at 690 V

Rotary handle padlocking

2 padlocks 8-8 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.2 cm

Package 1 width

10.2 cm

Package 1 length

20.4 cm

Package 1 weight

900 g
