Clipsal - 56 Series Surface Switch 2 Gang Three Pole 40A Base Mount | Grey

Item Number: 56SWHS340-GY

Grey 1 PCE 0

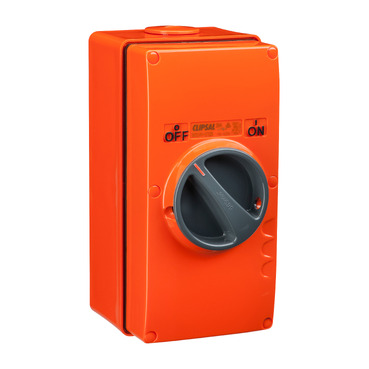

Chemical Resistant Orange 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554767679	GY
1	PCE	9311554767686	RO

Specifications

Design

Range	Clipsal - 56 Series
Product or component type	switch
Colour tint	grey
Market segment	industry utility small commercial

Physical

Control type	rotary knob
Ip degree of protection	IP66
[ue] rated operational voltage	500 V AC 50 Hz
Rated current	40 A
Standards	AS/NZS 3133
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120809EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Suitability for isolation	yes
Poles description	3P
Main colour tint	grey
Tightening torque	0.8 N.m
Breaking capacity	40 kA at 500 V (AC-21A)
Targeted country	Australia
Motor m-rating as3133	M220 at 690 V
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.2 cm
Package 1 width	10.2 cm
Package 1 length	20.4 cm
Package 1 weight	900.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	21 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	4.812163348361091
Carbon footprint of the manufacturing phase [a1 to a3]	5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.26985501569626363
Carbon footprint of the distribution phase [a4]	0.3 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.16519825178999412
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	13.6768
Carbon footprint of the use phase [b2, b3, b4, b6]	14 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	2.2062026135545256
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	21.130219229401874
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
