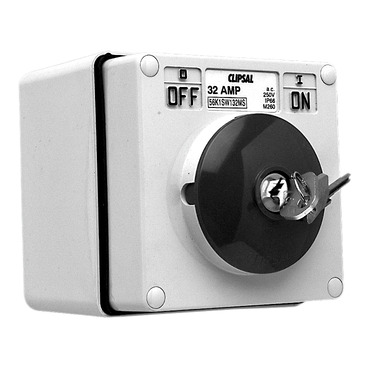

Clipsal - 56 Series, Surface Switch, 1 Pole, 250VAC, 32A, Key Operated, Off Locking Position

Clipsal - 56 Series, Surface Switch, 1 Pole, 250VAC, 32A, Key Operated, Off Locking Position Grey

Item Number: 56K1SW132MS-GY

Datasheet

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth112 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

switch

Device application

control

Colour

cover: grey

Market segment

small commercial|utility|industry

Physical

Device presentation

basic element with full cover plate

Control type

rotary knob

Number of poles

1

Device mounting

surface

Local signalling

without

[ue] rated operational voltage

250 V AC 50 Hz

Rated current

32 A

Marking

ON-OFF

Fixing mode

by screws

Height

107 mm

Width

101 mm

Depth

112 mm

Net weight

0.001 kg

Actuator

key

Switch function

1-pole

Ambient air temperature for operation

-25...75 °C

Ip degree of protection

IP66 conforming to AS 60529

Standards

AS/NZS 3133

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Handle colour

grey

Suitability for isolation

yes

Poles description

1P

[icm] rated short-circuit making capacity

1 kA

Tightening torque

0.8 N.m

Marking location

marking on surface

Breaking capacity

32 kA

Targeted country

Australia

Motor m-rating as3133

M250 at 250 V

[uimp] rated impulse withstand voltage

4 kV

[icw] rated short-time withstand current

1.2 kA for 1 s

Rotary handle padlocking

2 padlocks 8-8 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

0.001 kg
