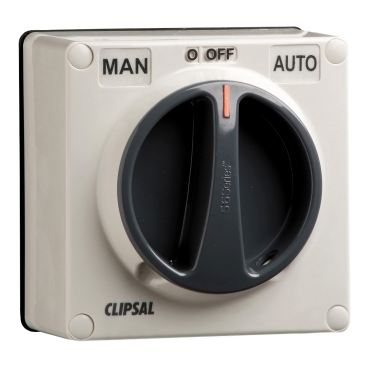

Clipsal - 56 Series Surface Switch 1 Gang Changeover 20A Less Enclosure (With 7 Series Mechanism) | Grey

Item Number: 56SW220COLE-GY

Grey 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width101 mm

Height107 mm

Depth91 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554239381	GY
24	CAR	19311554195868	GY

Specifications

Design

Range of product	Series 56
Range	Clipsal - 56 Series
Product brand	Clipsal
Product or component type	switch
Device application	control
Market segment	utility industry small commercial

Physical

Device presentation	basic element with full cover plate
Control type	rotary knob
Number of poles	2
Device mounting	surface
Local signalling	without
[ue] rated operational voltage	250 V AC 50 Hz
Rated current	20 A
Marking	ON-OFF
Height	107 mm
Width	101 mm
Depth	91 mm
Net weight	0.25 kg
Switch function	2-pole
Ambient air temperature for operation	-25...75 °C
Standards	AS/NZS 3133
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120809EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Suitability for isolation	yes
Poles description	2P
Tightening torque	0.8 N.m
Marking location	marking on surface
Breaking capacity	20 kA
Targeted country	Australia
Motor m-rating as3133	M150 at 250 V
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.7 cm
Package 1 width	10.1 cm
Package 1 length	9.1 cm
Package 1 weight	0.25 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.3367120412114144
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.07495972658229545
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.04588840327499837
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	2.2794666666666665
Carbon footprint of the use phase [b2, b3, b4, b6]	2 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.6128340593207017
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	4.349860897056076
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	2
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
