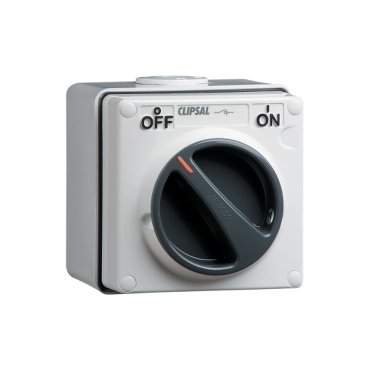

Clipsal - 56 Series Surface Switch 1 Gang, 2 Pole, 500VAC, 50A | Grey
Item Number: 56SW250-GY
Specifications
Design
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | switch |
| Device application | control |
| Market segment |
|
Physical
| Device presentation | basic element with full cover plate |
|---|---|
| Control type | rotary knob |
| Number of poles | 2 |
| Device mounting | surface |
| Local signalling | without |
| [ue] rated operational voltage | 250 V AC 50 Hz |
| Rated current | 50 A |
| Marking | ON-OFF |
| Fixing mode | by screws |
| Height | 107 mm |
| Width | 101 mm |
| Depth | 108 mm |
| Net weight | 0.001 kg |
| Switch function | 2-pole |
| Ambient air temperature for operation | -25...75 °C |
| Standards | AS/NZS 3133 |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1208009EN |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
Documents & downloads
Filter items
-
All
-
CAD Files and Packs
-

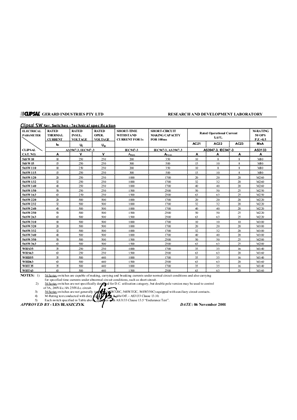

Technical Data Catalogues
-
Environmental Disclosure
-
Certificates (MSDS)
-
Declaration of Conformity
-
Declaration of Conformity (Sustainability)
ZIP

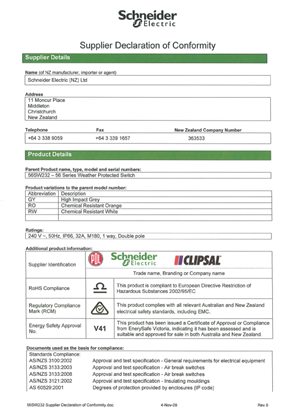

56 Series, 56SW232, Supplier Declaration of Conformity
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
DOWNLOAD (ZIP) 744.6 KB
ZIP

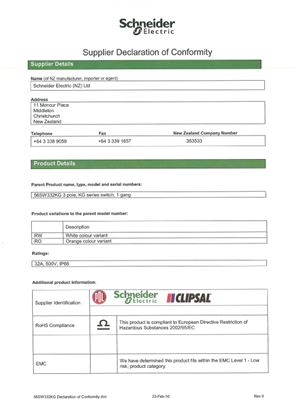

56 Series, 56SW332KG, Declaration of Conformity
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
DOWNLOAD (ZIP) 725 KB
ZIP

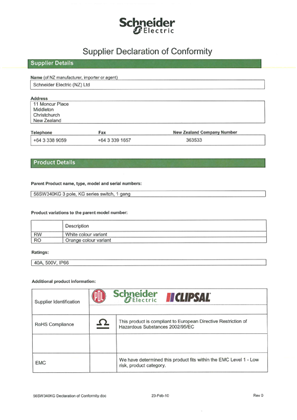

56 Series, 56SW340KG, Declaration of Conformity
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
DOWNLOAD (ZIP) 730.2 KB
ZIP

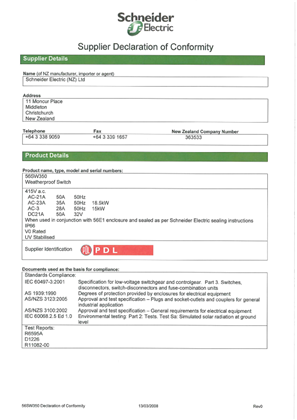

56 Series, 56SW350, Declaration of Conformity
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
DOWNLOAD (ZIP) 611.5 KB
ZIP
56 Series, 56SW350_2, Declaration of Conformity
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
DOWNLOAD (ZIP) 49.6 KB
ZIP

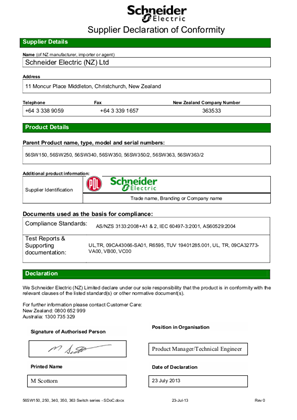

56 Series, 56SW363, Declaration of Conformity
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
DOWNLOAD (ZIP) 49.6 KB
