Clipsal - 56 Series, Surface Switch, 1 Gang, 2 Pole, 500VAC, 20A

Clipsal - 56 Series, Surface Switch, 1 Gang, 2 Pole, 500VAC, 20A Resistant Orange

Item Number: 56SW220-RO

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element with full cover plate

Control type

rotary knob

Number of poles

2

Device mounting

surface

Local signalling

without

[ue] rated operational voltage

500 V AC

Rated current

20 A

Marking

ON-OFF

Fixing mode

by screws

Switch function

2-pole

Standards

AS/NZS 3123|AS/NZS 3947-3

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120809EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

[icm] rated short-circuit making capacity

1 kA

Marking location

marking on surface

[uimp] rated impulse withstand voltage

4 kV

[icw] rated short-time withstand current

1.2 kA for 1 s

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.25 cm

Package 1 width

11.25 cm

Package 1 length

10.65 cm

Package 1 weight

573.0 g

Unit type of package 2

CAR

Number of units in package 2

12

Package 2 height

25.0 cm

Package 2 width

21.4 cm

Package 2 length

33.8 cm

Package 2 weight

6.888 kg
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Environmental Disclosure

  • Specification Guide

  • Certificates (MSDS)

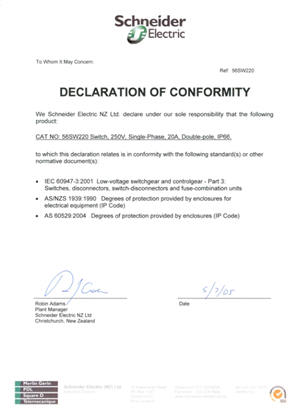

  • Declaration of Conformity
