Clipsal - 56 Series Straight Plug IP66, 250V 32A - 3 Round Pins | Electric Orange
Item Number: 56P332-EO
Specifications
Design
| Range | Clipsal - 56 Series |
|---|---|
| Range of product | Series 56 |
| Product brand | Clipsal |
| Product or component type | plug |
| Device application | power supply |
| Colour | orange (RAL 2004) |
| Market segment |
|
Physical
| [in] rated current | 32 A |
|---|---|
| [ue] rated operational voltage | 250 V AC 50 Hz conforming to EN 60309-2 |
| Outlet standard | industrial |
| Connections - terminals | screw terminal 2.5-25 mm² |
| Wire stripping length |
|
| Cable entry | cable gland |
| Net weight | 0.38 kg |
| Height | 79 mm |
| Width | 79 mm |
| Depth | 168 mm |
| Standards | AS/NZS 3123 |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25...75 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP121020EN_V2 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | plastic |
|---|---|
| Material | polycarbonate: housing |
| Contacts material | pins: brass |
Documents & downloads
-
All
-
Product Brochures
-
CAD Files and Packs
-
Technical Data Catalogues
-
Environmental Disclosure
-
Installation Instruction
-
Specification Guide
-
Certificates (MSDS)
-

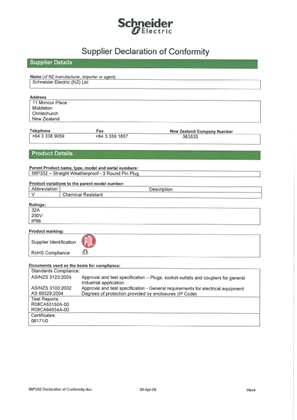

Declaration of Conformity
-
