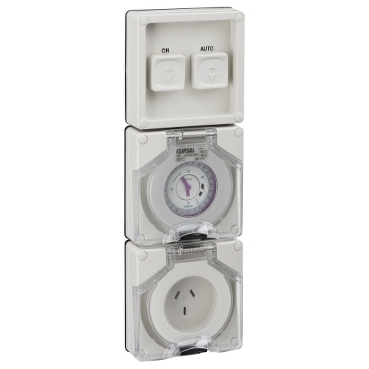

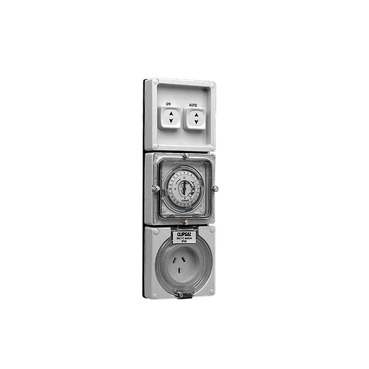

Clipsal - 56 Series, Socket Outlet Switched Timer Ip56 Less Enclosure, IP56 Less Enclosure Grey

Item Number: 56CTCLE-GY

Datasheet

Product Dimensions

Width icon

Width101 mm

Height icon

Height294 mm

Depth icon

Depth39 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

socket-outlet

Device application

power supply

Market segment

industry|utility|small commercial

Physical

Number of poles

3

Number of power socket outlets

1 protective cover

[in] rated current

10 A

[ue] rated operational voltage

250 V AC 50 Hz

Protection type

without protection

Device mounting

surface

Connections - terminals

screw terminals cable(s) 2.5-6 mm²

Depth

39 mm

Width

101 mm

Height

294 mm

Standards

AS/NZS 3133|AS/NZS 3123

Ambient air temperature for operation

-25...75 °C

Ip degree of protection

IP66 conforming to AS 60529

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate: cover

Contacts material

pins: phosphor bronze

Others

Package 1 bare product quantity

1

Plug, socket category

low voltage

Outlet standard deviation

Australian/New Zealand

Plug, socket, control station shape

straight

Poles description

1P + N + E

Number of plates

1

Electrical connection

industrial connector

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.9 cm

Package 1 width

10.1 cm

Package 1 length

29.4 cm

Package 1 weight

0.85 kg
