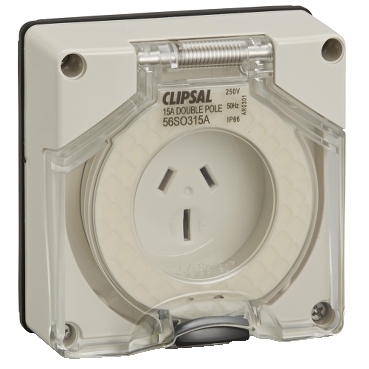

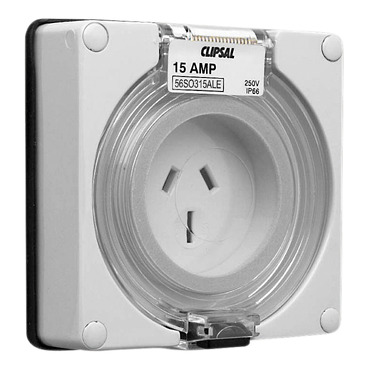

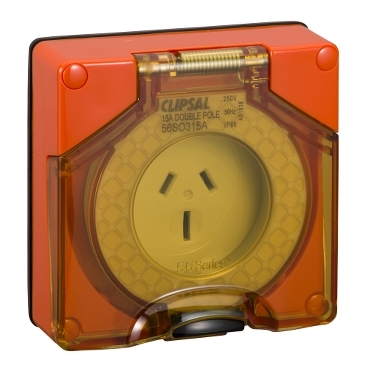

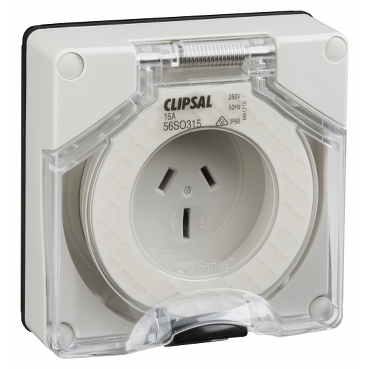

Clipsal - 56 Series Socket Outlet Surface Auto 3 Pole 15A Less Enclosure | Grey
Item Number: 56SO315ALE-GY
Specifications
Design
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | socket-outlet |
| Device application | power supply |
| Market segment |
|
Physical
| Number of poles | 2 |
|---|---|
| Device mounting | surface |
| Mounting mode | external mounting |
| [in] rated current | 15 A |
| [ue] rated operational voltage | 250 V AC 50 Hz conforming to EN 60309-2 |
| Connections - terminals | screw terminals 2.5-6 mm² rigid or stranded cable |
| Socket number | 1 |
| Outlet standard | industrial |
| Net weight | 0.22 kg |
| Depth | 64 mm |
| Width | 101 mm |
| Height | 107 mm |
| Ambient air temperature for operation | -25...75 °C |
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2511024EN |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate: cover |
|---|---|
| Contacts material | screws: brass |
