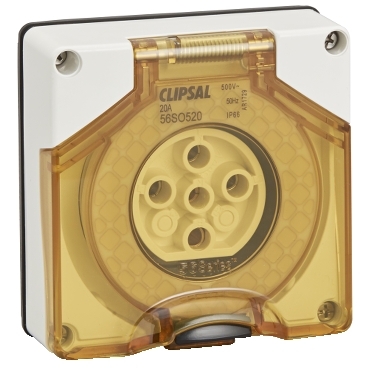

Clipsal - 56 Series Socket Outlet Surface 5 PIN Round 20A Less Enclosure

Home ProductsIndustrial56 SeriesSocket Outlet

Clipsal - 56 Series Socket Outlet Surface 5 PIN Round 20A Less Enclosure | Chemical Resistant Grey

Item Number: 56SO520LE-CG

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth71 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

socket-outlet

Device application

power supply

Market segment

  • industry
  • utility
  • small commercial

Physical

Device mounting

surface

Mounting mode

external mounting

[in] rated current

20 A

[ue] rated operational voltage

500 V AC 50 Hz conforming to EN 60309-2

Connections - terminals

screw terminals 2.5-6 mm² rigid or stranded cable

Socket number

1

Outlet standard

industrial

Net weight

0.34 kg

Depth

71 mm

Width

101 mm

Height

107 mm

Ambient air temperature for operation

-25...75 °C

Standards

AS/NZS 3112

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

ABS (acrylonitrile butadiene-styrene): cover

Contacts material

screws: brass

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Weee applicability

Finished product

Weee label

N/A

Outside of Europe

Outlet standard deviation

Australian/New Zealand

Plug, socket category

low voltage

Poles description

3P + N + E

Voltage colour

black

Duration

7 h

Tightening torque

0.8 N.m

Socket-outlet type

R

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.8 cm

Package 1 width

9.8 cm

Package 1 length

9.8 cm

Package 1 weight

302.2 g

Sustainable packaging

No

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Take-back

No

Warranty (in months)

18
Show all specifications
