Clipsal - 56 Series Socket Outlet Surface 3 PIN Round 32A | Grey
Item Number: 56SO332/6-GY
Datasheet
Close
Specifications
Design
| Range of product | Series 56 |
|---|---|
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | socket-outlet |
| Device application | power supply |
| Market segment |
|
Physical
| Device mounting | surface |
|---|---|
| Mounting mode | external mounting |
| [in] rated current | 32 A |
| [ue] rated operational voltage | 250 V AC 50 Hz conforming to EN 60309-2 |
| Connections - terminals | screw terminals rigid or stranded cable |
| Socket number | 1 |
| Outlet standard | industrial |
| Net weight | 0.58 kg |
| Width | 101 mm |
| Height | 107 mm |
| Ambient air temperature for operation | -25...75 °C |
| Standards | IEC 309 |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate: cover |
|---|---|
| Contacts material | screws: brass |
Documents & downloads
Filter items
-
All
-

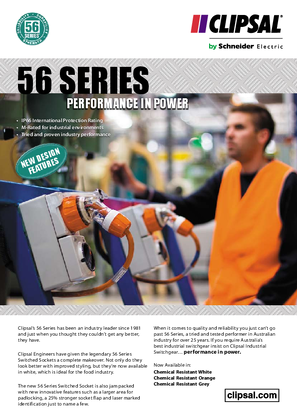

Product Brochures
-
CAD Files and Packs
-

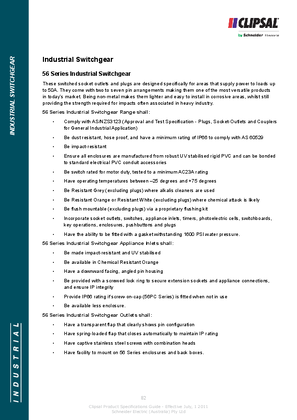

Specification Guide
-
