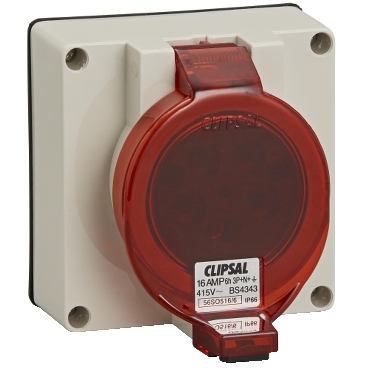

Clipsal - 56 Series, Socket Outlet, Surf 5 PIN Round 16A Less Enclosure Grey
Item Number: 56SO516/6LE-GY
Datasheet
Close
Specifications
Design
Range
Clipsal - 56 Series
Product or component type
socket-outlet
Device application
power supply
Market segment
utility|industry|small commercial
Physical
Mounting mode
surface mounted
[in] rated current
16 A
[ue] rated operational voltage
500 V AC 50 Hz
Connections - terminals
screw terminals rigid or stranded cable
Outlet standard
industrial
Net weight
0.292 kg
Length
107 mm
Width
101 mm
Ip degree of protection
IP66 conforming to IEC 60529
Ambient air temperature for operation
-25...75 °C
Standards
IEC 309-1
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
polycarbonate: cover
Contacts material
screws: brass
Others
Package 1 bare product quantity
1
Plug, socket category
low voltage
Poles description
3P + N + E
Secondary keyway clockwise position
6 h
Tightening torque
0.8 N.m
Targeted country
Australia
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10.5 cm
Package 1 width
10.5 cm
Package 1 length
10 cm
Package 1 weight
0.292 kg
