Home ProductsIndustrial56 SeriesSocket Outlet

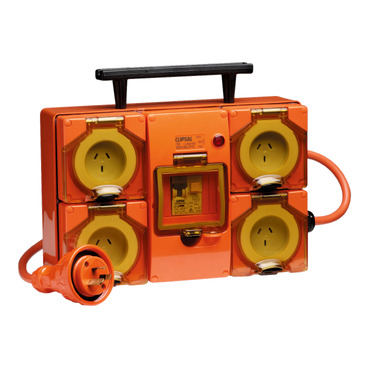

Clipsal - 56 Series Socket Outlet 250V, 10A, 30mA RCD, Portable RCD Protected | Grey

Item Number: 56SO4ELP15-GY

Grey 1 PCE 0
Chemical Resistant Orange 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width294 mm

Height243 mm

Depth105 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554262747	GY
5	CAR	19311554262744	GY
1	PCE	9311554203627	RO
5	CAR	19311554116894	RO

Specifications

Design

Range of product	Series 56
Range	Clipsal - 56 Series
Product brand	Clipsal
Product or component type	socket-outlet with residual current device
Device application	power supply
Market segment	industry small commercial utility

Physical

Control type	push-button
Mounting mode	external mounting
[in] rated current	15 A
[ue] rated operational voltage	250 V AC 50 Hz conforming to EN 60309-2
Number of gangs	6 gangs
Socket number	1
Net weight	3.252 kg
Depth	105 mm
Width	294 mm
Height	243 mm
Ip degree of protection	IP56
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511024EN
Eu rohs directive	Compliant By Exemption

Material

Material	polycarbonate

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Network number of phases	1 phase
Voltage colour	blue
Duration	6 h
Targeted country	Australia
Main colour tint	grey
Earth-leakage protection class	class A
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.5 cm
Package 1 width	40.5 cm
Package 1 length	6.0 cm
Package 1 weight	3.117 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	52 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	30.88507425419549
Carbon footprint of the manufacturing phase [a1 to a3]	31 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.7206194610966512
Carbon footprint of the distribution phase [a4]	0.7 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.43408068201956124
Carbon footprint of the installation phase [a5]	0.4 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	16.93097502582249
Carbon footprint of the use phase [b2, b3, b4, b6]	17 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	2.9917934185678248
Carbon footprint of the end-of-life phase [c1 to c4]	3 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	51.96254284170202
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
