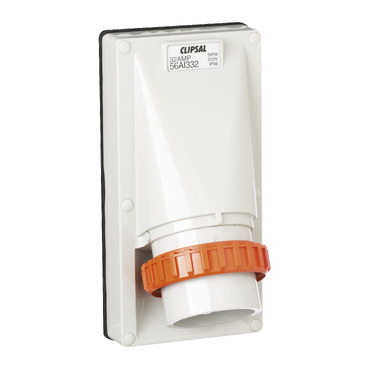

Clipsal - 56 Series Socket Appliance Inlet Socket Appl Inlet IP66 3P 32A Less Enclosure | Grey
Item Number: 56AI332LE-GY
Specifications
Design
| Range | Clipsal - 56 Series |
|---|---|
| Range of product | Series 56 |
| Product brand | Clipsal |
| Product or component type | appliance inlet |
| Device application | power supply |
| Colour | grey (RAL 7035) |
| Market segment |
|
Physical
| [in] rated current | 32 A |
|---|---|
| [ue] rated operational voltage | 250 V 50/60 Hz conforming to EN 60309-2 |
| Mounting mode | surface mounted |
| Outlet standard | industrial |
| Connections - terminals | screw terminal 6-16 mm² rigid or stranded cable |
| Net weight | 0.5 kg |
| Height | 204 mm |
| Width | 101 mm |
| Depth | 102 mm |
| Standards | AS/NZS 60320.1 |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25...75 °C |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | plastic |
|---|---|
| Material | polycarbonate: cover |
| Contacts material | screws: brass |
