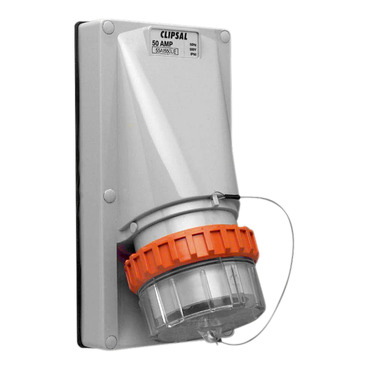

Clipsal - 56 Series Socket Appliance Inlet Ip56 5 PIN Less Enclosure | Grey

Item Number: 56AI550LE-GY

Grey 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width101 mm

Height204 mm

Depth102 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554235680	GY
12	CAR	19311554113039	GY

Specifications

Design

Range	Clipsal - 56 Series
Range of product	Series 56
Product brand	Clipsal
Product or component type	appliance inlet
Device application	power supply
Colour	grey (RAL 7035)
Market segment	industry small commercial utility

Physical

[in] rated current	50 A
[ue] rated operational voltage	500 V 50/60 Hz conforming to EN 60309-2
Mounting mode	surface mounted
Outlet standard	industrial
Connections - terminals	screw terminal 10-16 mm² rigid or stranded cable
Net weight	0.583 kg
Height	204 mm
Width	101 mm
Depth	102 mm
Standards	AS/NZS 60320.1
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1508011_V2
Eu rohs directive	Compliant By Exemption

Material

Material	plastic
Material	polycarbonate: cover
Contacts material	screws: brass

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
	Outside of Europe
Poles description	3P + N + E
Voltage colour	black
Plug, socket category	low voltage
Outlet standard deviation	Australian/New Zealand
Tightening torque	0.8 N.m
Plug, socket, control station shape	angled
Duration	7 h
Targeted country	Australia
Main colour tint	grey
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.8 cm
Package 1 width	10.4 cm
Package 1 length	20.0 cm
Package 1 weight	517.2 g
Unit type of package 2	CAR
Number of units in package 2	12
Package 2 height	21.0 cm
Package 2 width	34.8 cm
Package 2 length	44.5 cm
Package 2 weight	6.996 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.002725919356170037
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00006671090218737102
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00000301269533635988
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.00002133425000000001
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.00009230835328105655
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.002919142330499381
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
