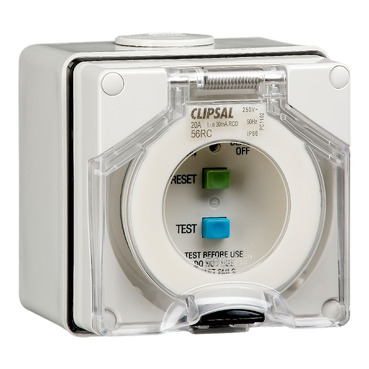

Clipsal - 56 Series Residual Current Circuit Breaker 2 Pole, 20A | Chemical Resistant White

Item Number: 56RC-RW

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width101 mm

Height icon

Height101 mm

Depth icon

Depth101 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product or component type

residual current circuit breaker (RCCB)

Product brand

Clipsal

Device application

protection

Market segment

industry

Physical

[in] rated current

20 A

[ue] rated operational voltage

250 V AC 50 Hz

Control type

push-button

Protection type

earth-leakage protection

Installation direction

vertical

Mounting mode

surface mounted

Mounting support

DIN rail

Height

101 mm

Width

101 mm

Depth

101 mm

Net weight

0.58 kg

Number of gangs

1 gang

Ip degree of protection

IP66

Ambient air temperature for operation

-25...75 °C

Electrical insulation class

class II

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Poles description

2P

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type A

Size

107 x 101 x 101 mm conforming to DIN 43880

Cable cross section

1...10 mm²

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.8 cm

Package 1 width

10.6 cm

Package 1 length

11.6 cm

Package 1 weight

588.0 g

Sustainable packaging

No

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • CAD Files and Packs

  • Installation Instruction

  • Operating Manuals

  • Specification Guide

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Clipsal Lifesavers in Electrical Protection - 22498
ZIP

Clipsal Lifesavers in Electrical Protection - 22498

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.4 MB
56 Series Performance in Power, 20139
ZIP

56 Series Performance in Power, 20139

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 375.2 KB
Revit Pack 56 Series
ZIP

Revit Pack 56 Series

VERSION

1.0

DATE

11 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.8 MB

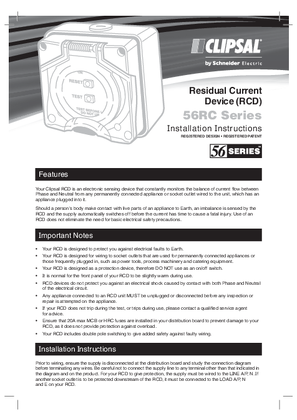

Installation Instructions - F2195/02 - 56RC Series Residual Current Device 21327
