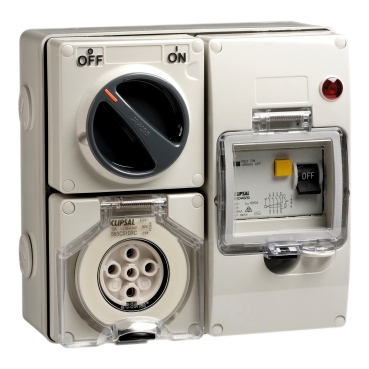

Clipsal - 56 Series, RCD Protected Switched Socket Outlet, 500V 20A 5 Round PIN, IP66 3 Pole, 30mA RCD

Home ProductsIndustrial56 SeriesRCD Protected Switched Socket Outlet

Clipsal - 56 Series, RCD Protected Switched Socket Outlet, 500V 20A 5 Round PIN, IP66 3 Pole, 30mA RCD CG

Item Number: 56SC520RC-CG

Datasheet

Product Dimensions

Width icon

Width204 mm

Height icon

Height204 mm

Depth icon

Depth135 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

socket-outlet with residual current device

Device application

power supply

Market segment

utility|industry|small commercial

Physical

Number of poles

5

Control type

push-button

Number of power socket outlets

1 protective cover

[in] rated current

20 A

[ue] rated operational voltage

500 V AC 50 Hz

Number of gangs

4 gangs

Installation direction

vertical

Device mounting

surface

Connections - terminals

screw terminals cable(s) 1.5-16 mm²

Depth

135 mm

Width

204 mm

Height

204 mm

Net weight

2.04 kg

Ambient air temperature for operation

-25...75 °C

Ip degree of protection

IP66

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate

Others

Package 1 bare product quantity

1

Number of modules

3

Network number of phases

3 phases

Targeted country

Australia

Earth-leakage protection class

class A

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

12.0 cm

Package 1 width

20.8 cm

Package 1 length

20.8 cm

Package 1 weight

1.944 kg
